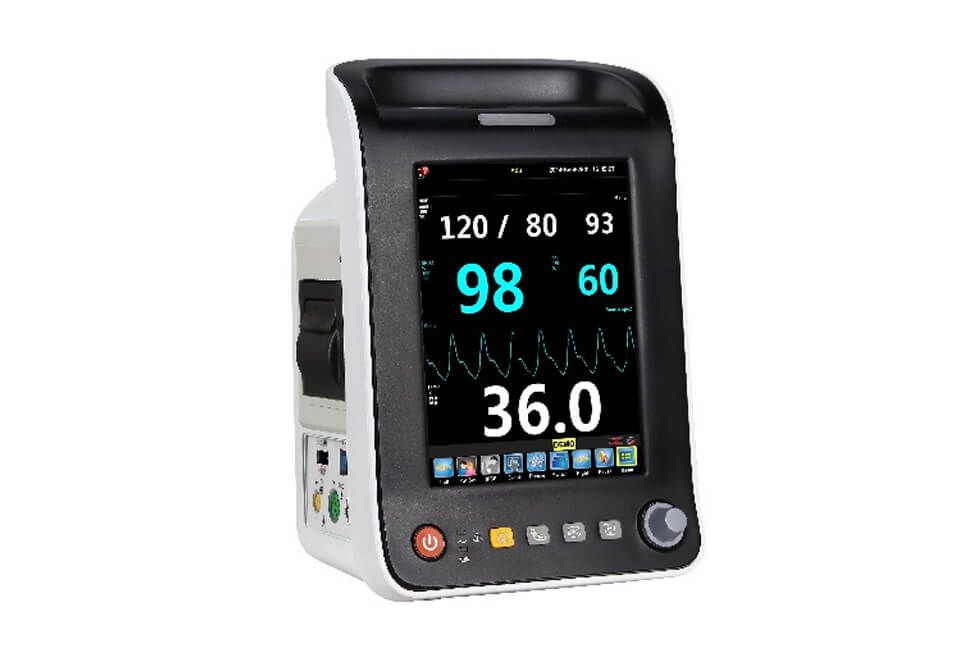

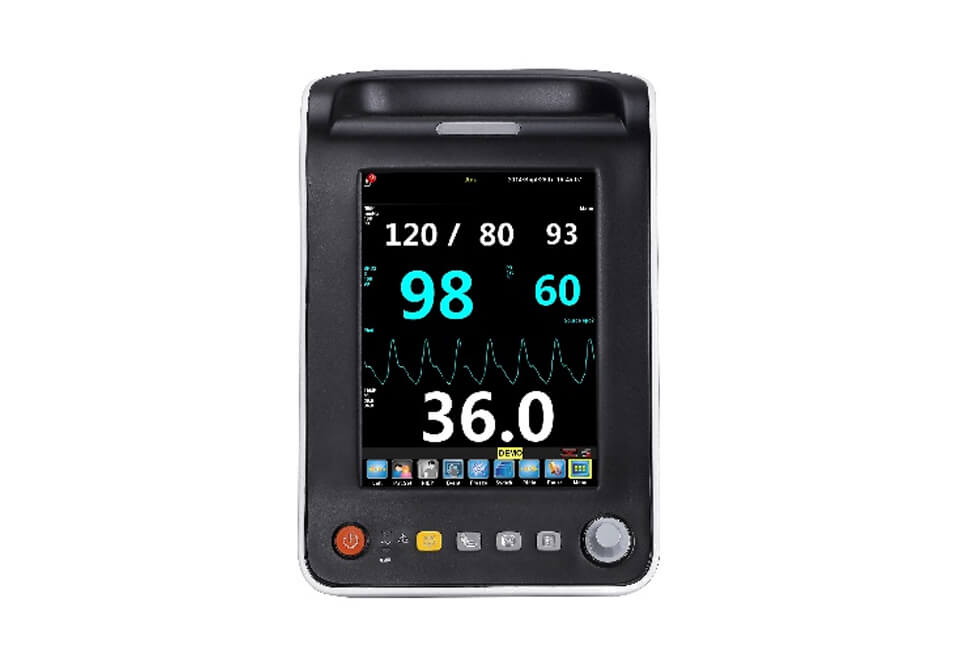

The Northern Aquarius Vital Sign Monitor is an entry-level Patient Monitor at an extremely affordable price. Intuitive navigation and monitoring of the patient's vital signs including SpO2, NIBP, and Heart Rate with Li-ion battery (10 hours). 3 Lead ECG, EtCO2, and touchscreen are optional. This monitor is suitable for outpatient departments, spot checks, transport, ward, and other basic monitoring.
8" color TFT LCD Screen (touch screen option)
Portable, ergonomic, light weight, sturdy design
Suitable for adult, pediatric & neonatal patients
Flexible parameters configuration for different clinical environments
Spot-check and continuous monitoring mode with alarms
Graphical & tabular trend review with customizable size & color settings
Rechargeable Li-ion Battery (up to 10 hours)
48 hours holographic wave review for each patient
Wired or Wireless CMS (Central Monitoring System)
Standard Configuration:
SpO2 + NIBP, Li-ion battery or SpO2+NIBP+ECG+TEMP, Li-ion battery
Optional Configuration:
Thermal printer, Wall Mount, EtCO2, Multigas, Nellcor/Masimo, IBP, Bar Code Scan
Wired or Wireless CMS (Central Monitoring System) (optional extras pictured)
Display: 8"color TFT LCD Screen, relosution: 800 x 600
ECG (optional): Lead type, 3-lead: l, II, Ill, S· lead: l, II, lll,aVR, a VI., aVF, V
RESP: Measurement method: Scan speed: 6.25mm/s, 12.5 mm/s, 25mm/s
TEMP: Measuring range: 5- 50'C (41-122'F), Measurement accuracy: ±0.1'C
Printing (optional): Built-in, Thermal dot array
NIBP: Adult 40-270, Pediatric 40-230, Neonatal 40-135
SpO2: Measurement range: 0-100%
