The bed frame is formed by sheet metal bending and welding, which reduces the dead angle of the plastic spraying and makes the product more beautiful.
Environmental plastic can be sterilized at 100°C, tensile up to 30MPa Virgin ABS material.
Process epoxy painting, A STM testing anti-bacterial, paint thickness 0.12mm, brightness 60°, paint can resist 50 kg impact.
Adopt aluminum alloy liftable guardrail, the distance between the protective tubes is less than 8 cm, and there are 3 gears to adjust the height, anti-pinch hands to protect children's safety.
The bed ends are integrally formed by PP blow molding, which is warm and beautiful and can effectively protect the bed and the patient from colliding with the wall.
Welding: Panasonic robotic ensure, 360° full smooth welding.
Panasonic robotic ensure, 360° full smooth welding.
Castors: 5" silent casters, each with independent brakes.

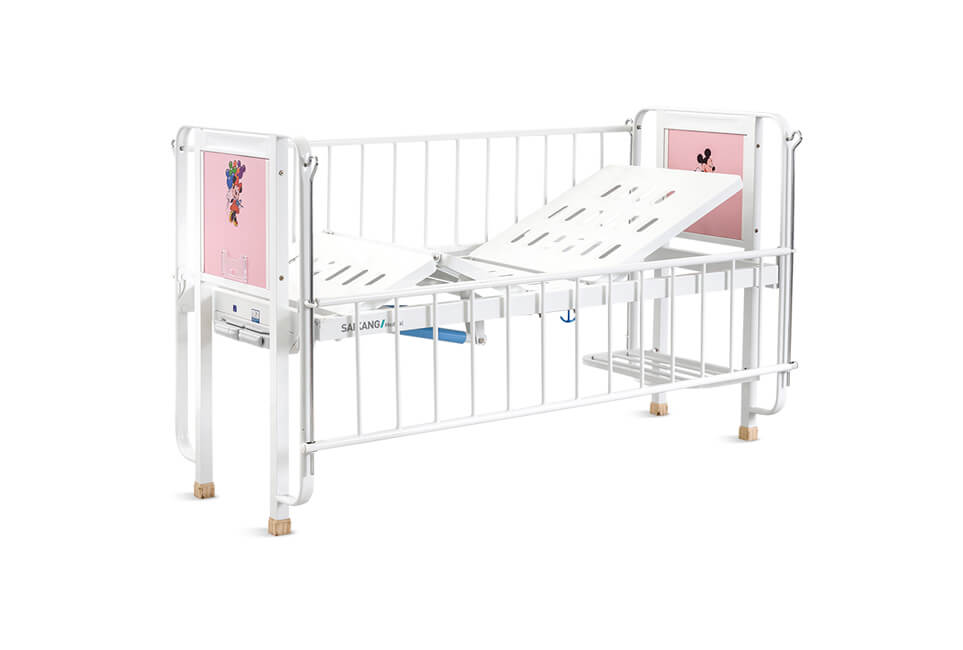

2 functions manual
External length | 1800mm |
External width | 900mm |
Bed height | 650mm |
External height | 1260mm |
Mattress platform | 1760*800mm |
Manual cranks | 2pcs |
5″covered castors | 4pcs |
Full length side rail | 1set |
Plastic bed ends with cartoon bear | 1set |
IV pole prevision | 4pcs |
IV pole | 1pc |
Drainage hook | 2pcs |
Buffer air spring | 4pcs |
