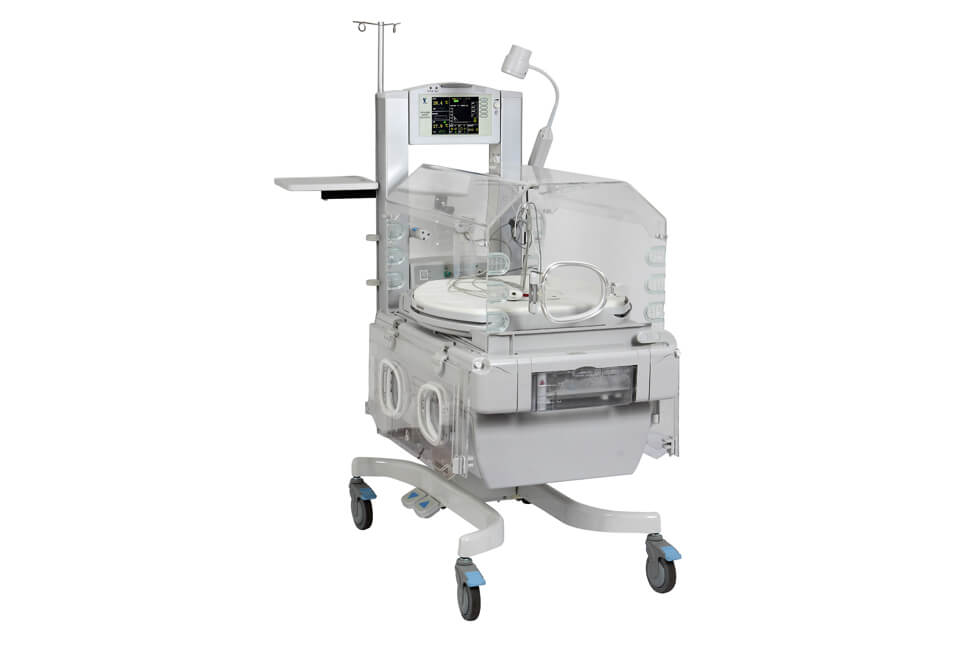

YP-2008 Infant Incubator

Key Features of YP-2008 Infant Incubator

• Two control modes: Air mode and Baby mode servo-controlled by micro-computer;

• The information can be stored, checked, and indicated by the color LCD screen;

• Humidity and oxygen concentration display and servo control system;

• ">37℃" temperature set function;

• The air circle with outlet in both front and back of the hood;

• Low noise brushless DC motor;

• Operating doors on three sides;

• X-ray cassette under the bassinet;

• Water reservoir integrated with heater, high-temperature disinfection can be applied;

• The inclination of the bassinet is adjustable;

• The height of the whole unit can be adjusted;

• Multiple failure alarm indications;

•  RS-232 connector for data output.

Technical Specifications of YP-2008 Infant Incubator

• Power supply: AC220V-230V/50Hz or AC110-120V/50-60Hz, 1300VA

• Air temperature control range: 25'C-37'C(override mode 37C-39℃)

• Baby temperature control range: 34℃-37'C(override mode 37C-38C)

• Accuracy of skin temperature sensor: ±0.2'℃

• Temperature uniformity: ≤0.8'℃(mattress is on the horizontal position)

• ≤1.0'℃(mattress is on the maximum tin position)

• The inclination of the bassinet: ±12° (step-less adjustable)

• The noise inside hood: ≤45dB(A)

• Failure alarm: over-temperature alarm, temperature deviation alarm, sensor alarm, motor fan failed alarm, power failure alarm, water tank position alarm, system alarm, and so on.

• Humidity display range: 0%RH-99%RH

• Humidity control range: 0%RH-90%RH

• Accuracy of humidity display: ±5%RH

• Accuracy of humidity control: ±5%RH

• Indication range of oxygen concentration: 0%~99%

• Control range of oxygen concentration: 20%-60%

• Indication accuracy of oxygen concentration:

  ±2%(oxygen concentration setting value is 25% and below)

  ±3%(Oxygen concentration setting value is 25%and above)

• Control accuracy of oxygen concentration: ±4%

• Weighing Range: 0-8000g (weight system)

• Resolution for weight indication: 1g (weight system)

• Accuracy of weighing indication: ±1% (weight system)
