In addition to the conventional six parameters, slots for AG, ICG, IBP, BIS, C.O., EtCO2 and other functional modules are also available to meet the clinical needs of the operating room and various ICUs.
Strong anti-interference capability
Dual anti-interference of hardware and software
To provide clear waveform when used in the OR/ICU
All-in-one module design
ASIC Medical Diagnostic Grade Chip
Surgery mode, ST segment mode
Mixed networking with other models monitors to connect to the central workstation
Connect to HIS, CIS and other information systems of hospitals

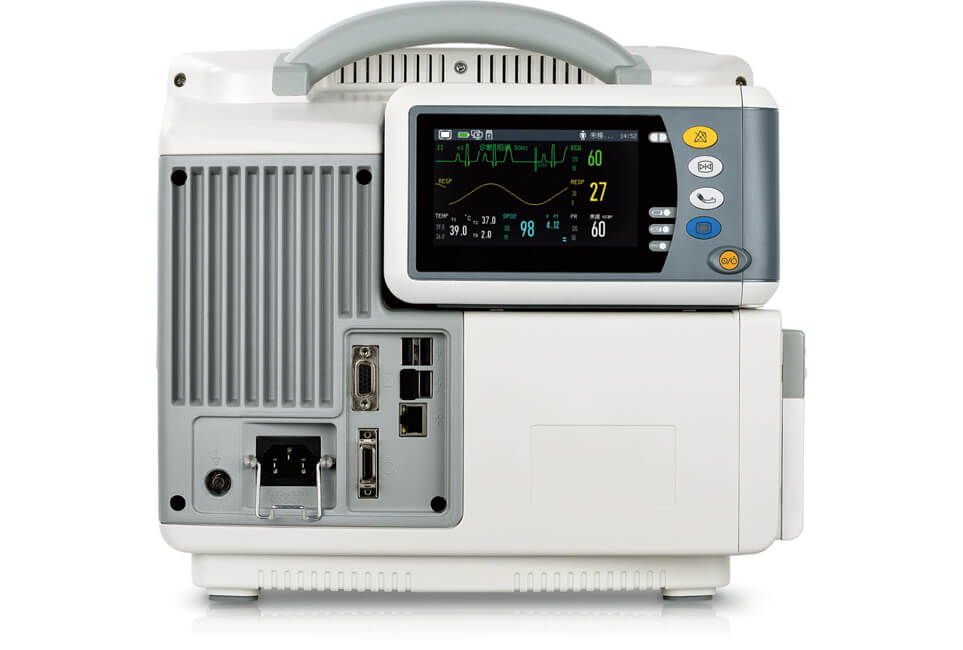

A transport monitor C30 is available, connecting data across different applications, delivering an uninterrupted monitoring during patient transfer.

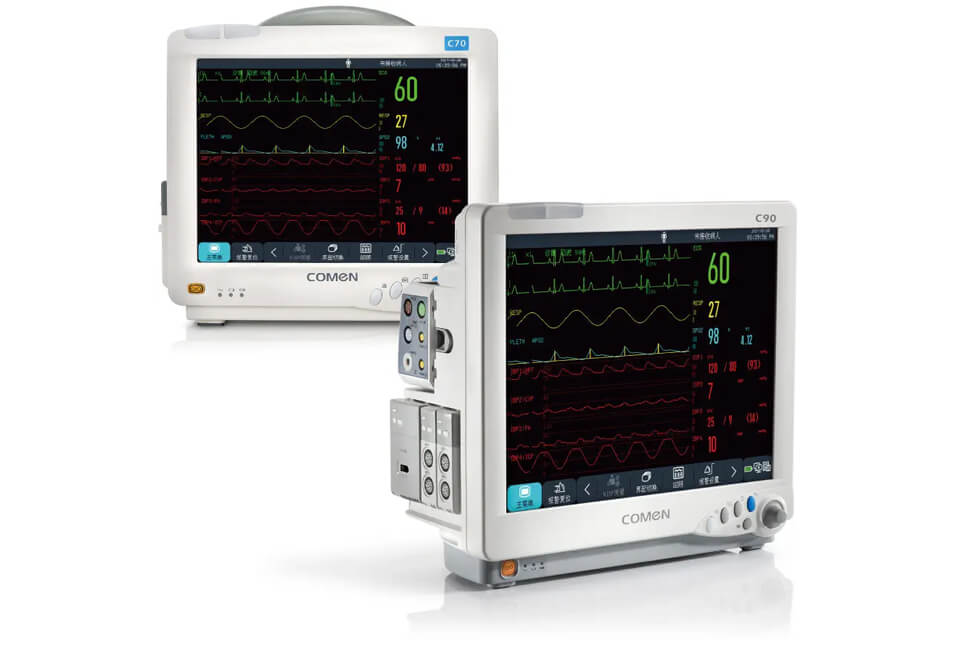

C70: 12.1", C80: 12.1", C90: 17" Color touch Screen; Resolution: 1280x1024
3*USB interface, mouse, keyboard and PCL printer can be connected
Arrhythmia, S-T Analysis, OxyCRG, Large Font Display
Power-off storage
Synchronization defibrillation interface/DVI-D interface
Standard Configuration(C30-H): 5-lead ECG, HR, RESP, PR, NIBP, SpO2, 2-TEMP Socket, EtCO2 Socket
Optional Configurations: 4-IBP, Mainstream / Sidestream EtCO2, ICG, C.O.Bis, AG, 12Lead ECG, RM, Thermal Recorder, Nellcor SpO2, Masimo SpO2, etc
12Pin 5Lead Clip Connector ECG Cable/Lead replaceable Anti-Defibrillation/IEC
Wireless Connection: Optional
Battery Life: 120 min - 90 min
