More comfortable and reliable operation with modern design.

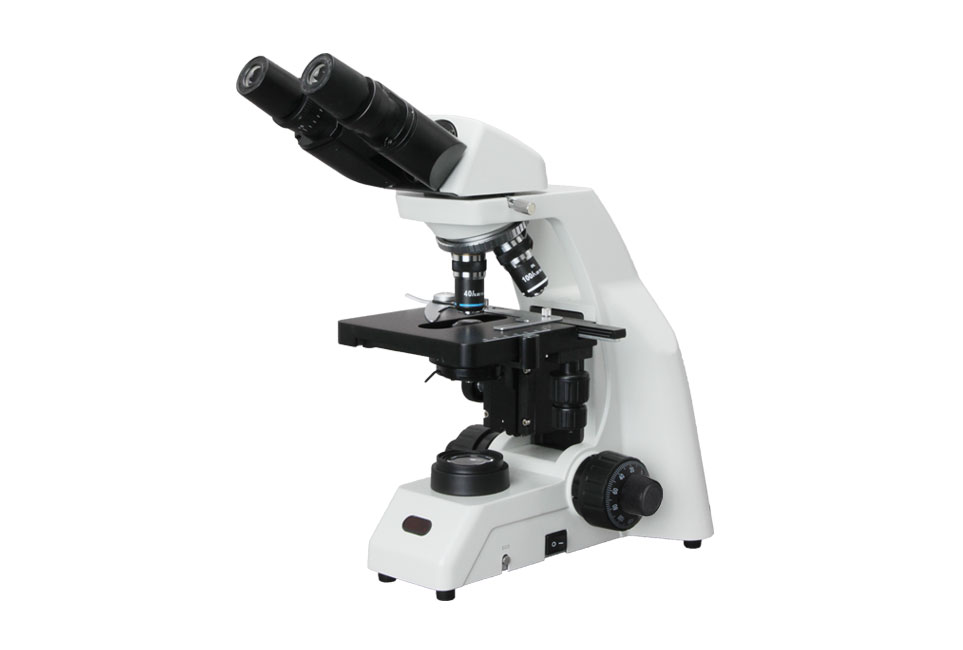

The MODEL N-100 is an economical microscope with all basic features for educational use in elementary and high school.
Sharp Image Display with Excellent Optical Function.
Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology.
Comfortable Operation with Ergonomic Design Principle.
Optical System | Infinite Optical System |
Eyepiece | WF10×/20 |
Viewing Head | Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm |
Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | |
Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi | |
Infinite Semi-Plan Achromatic Objective | 4× NA=0.1 WD=16.8 |
10× NA=0.25 WD=5.8 | |
40× NA=0.65 WD=0.43 | |
100× NA=1.25 WD=0.13 | |
Nosepiece | Backward Quadruple Nosepiece |
Stage | Rackless Double Layers Mechanical Stage 150X139mm, Moving Range 75X32mm |
Condenser | NA1.25 Abbe Condenser |
Dark Field Condenser (Dry, Oil) | |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm |
Illumination | Halogen Lamp 6V/20W |
S-LED Illumination | |
S-LED Illumination with Recharger | |
Kohler Illumination | |
ECO Function | |
Plane-concave Mirror | |
Fluorescent Attachment | Fluorescent Illumination, LED lamp |
Fluorescent Illumination, 100W HBO lamp |
