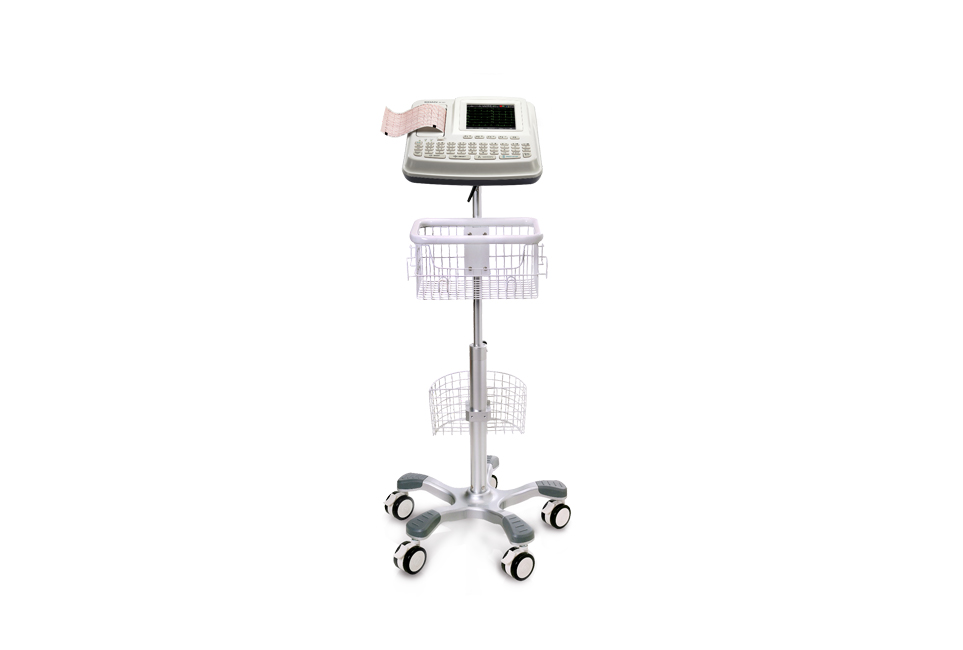

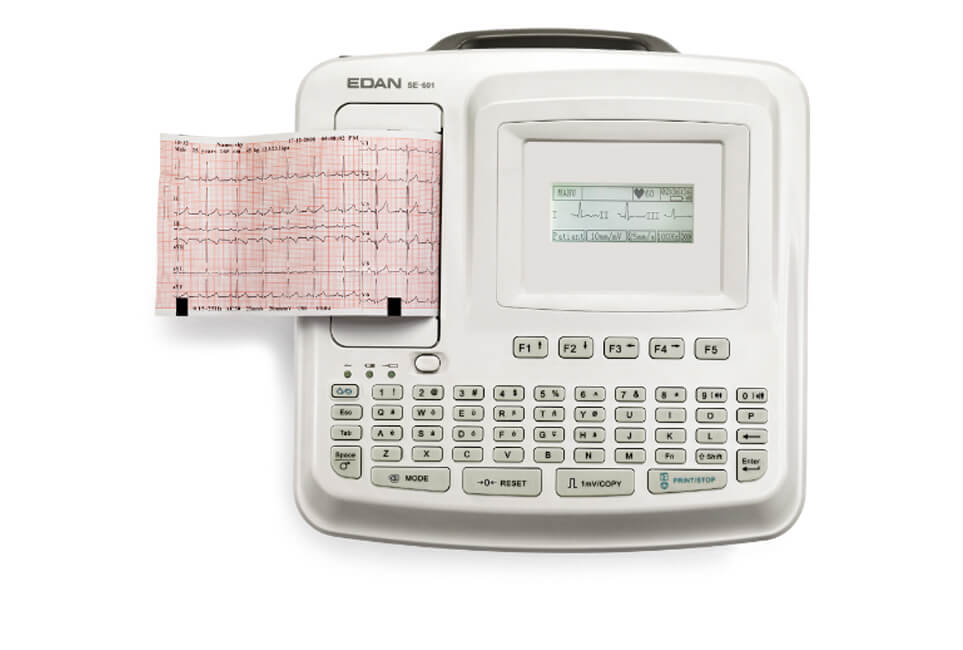

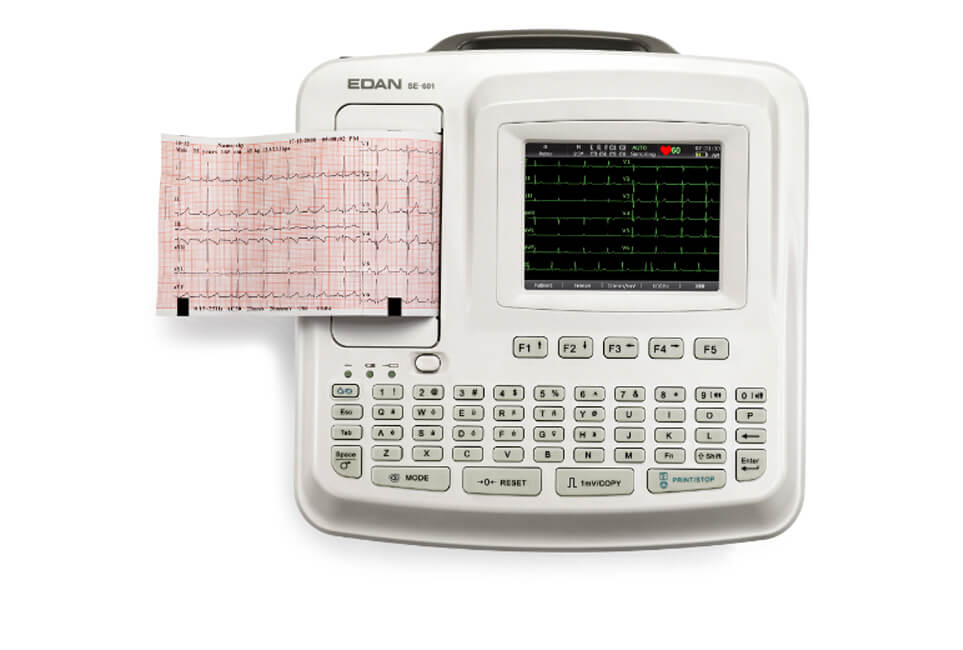

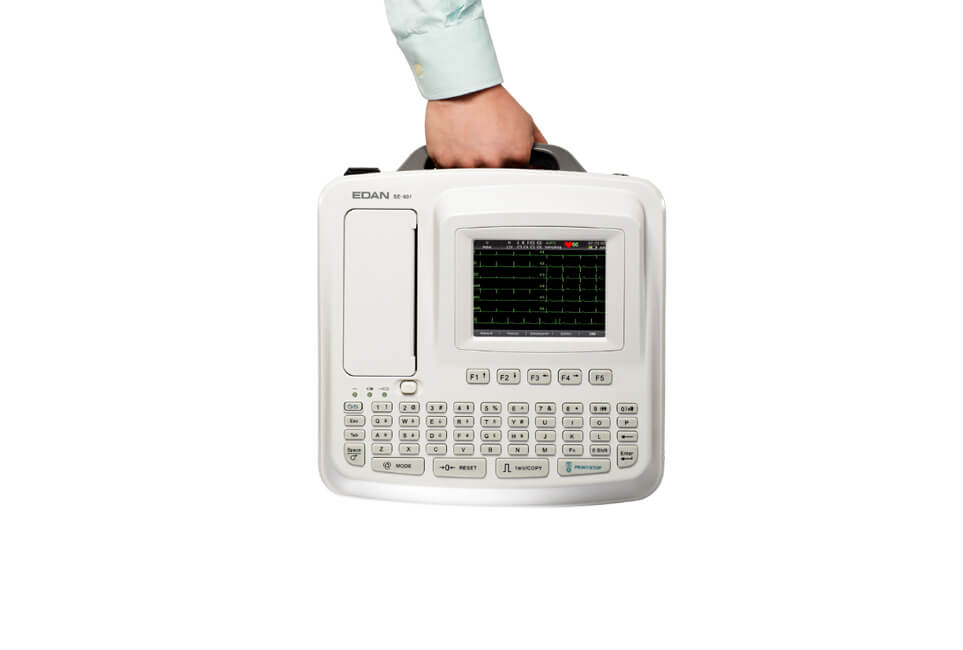

Compact and ready ECG service, integrated with its alphanumeric keyboard, built-in rechargeable battery, and large storage capacity, the SE-601 Series is prepared to be carried through your daily practices.
Alphanumeric keyboard
Data Management
12 leads simultaneous acquisition
A sampling rate as high as 16,000 Hz aims at capturing all the details to generate a precise result
Weak signal detection with the advanced 24-bit A/D converter technology
Anti-noise technology with comprehensive filters and the high CMRR over 140dB
Bandwidth from 0.01 to 300 Hz guarantees the interpretation especially for pediatric patients
Extend printing once arrhythmia is detected to further your rhythm analysis
Automatic measurements and interpretation tested with CSE/AHA/MIT database
SE-1515 software for data management on PC (optional)
Report formats: PDF (for SE-601B/C) and optional
SCP/FDA-XML/DICOM data export
HR Range: | 30 BPM ~300 BPM |
Accuracy: | ±1 BPM |
Leads: | 12 standard leads |
Acquisition Mode: | simultaneously 12 leads |
A/D Converter: | 24 bits |
Resolution: | 2.52uV/LSB |
Time Constant: | ≥3.2s |
Frequency Response: | 0.01Hz ~ 300Hz (-3dB) |
Gain: | 2.5, 5, 10, 20, 10/5 mm/mV, AGC |
Input Impedance: | ≥100MΩ (10Hz) |
Input Circuit Current: | ≤0.01μA |
Input Voltage Range： | ≤±5 mVpp |
Calibration Voltage: | 1mV±2% |
CMRR: | ≥140dB (AC on) |
