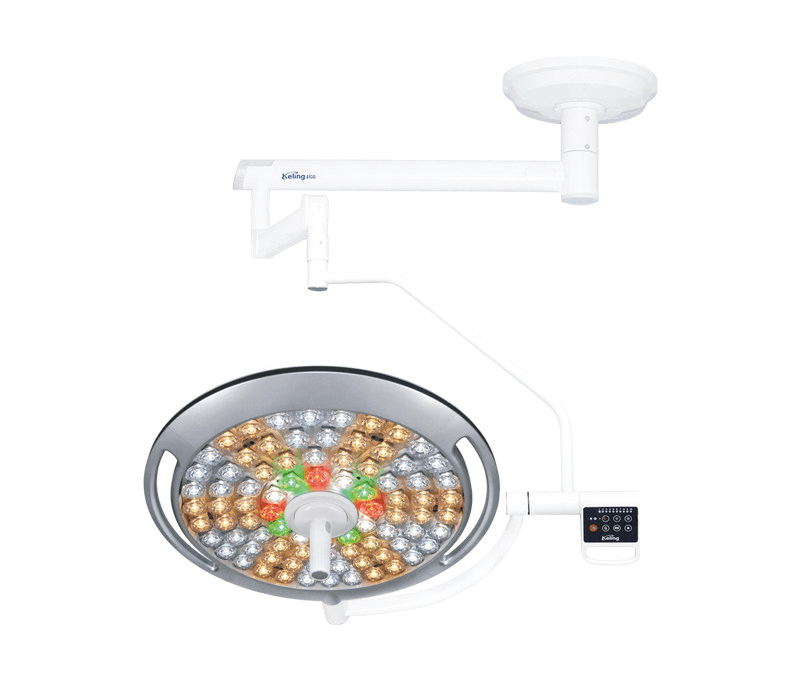

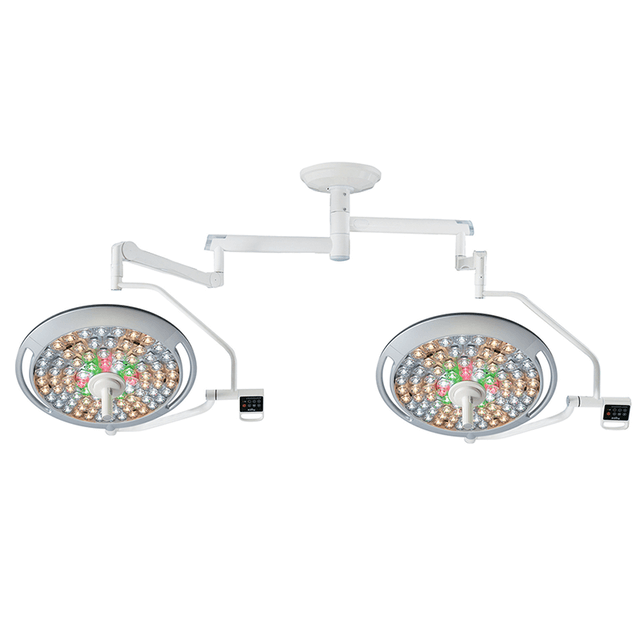

KL-LED.DTR78 D78 Series (KL-LED.DTR78/DTR78, KL-LED.DTR78, KL-LED.D78/D78, KL-LED.D78) LED Shadowless Operating Light is suitable for various operation needs. It is a modern ideal surgical lighting equipment operating room and purify the operating room.
Adopt imported LED cold light source.
Nano coating and die-cast aluminum enclosure creating a streamlined excellent cooling effect. Intelligent touch control screen.
The removable handle sheath can be cleaned and disinfected.
The no welding titanium alloy arm, imported spring arm is lifted and lowed easily and freely.
The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable.
Adjustable temperature, R9 features that enhance the red color rendering index.
The service life of LED shadowless lamp is long (50,000h).
The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.
The no welding titanium alloy arm, imported spring arm is lifted and lowered easily and freely.
Model | KL-LED·DTR78/ DTR78 | |
Illumination at 1m(lux) | 160000/160000 | |
Illumination at 1m on Endo model(lux) | 15000 | |
Light field diameter D10 | 180±40/180±40 | |
D50 mm | 110±35/110±35 | |
Depth of illumination L1+L2 mm | 150 | |
Color rendering index (Ra) | 100≥Ra≥85 | |
Red color index | R9≥97 | |
Optional color temperature(K) | 6700K ≥Tc≥3500k | |
Number of LED bulbs | 84/84 | |
Average bulb life (hours) | 50000h | |
Heat-to-light ratio (mW/m ²lx) | ＜6 | |
Power supply | 110-240V | |
Input power (VA) | 150W/150W | |
Ceiling height for installation(cm) | 2.7-3.2m | |
