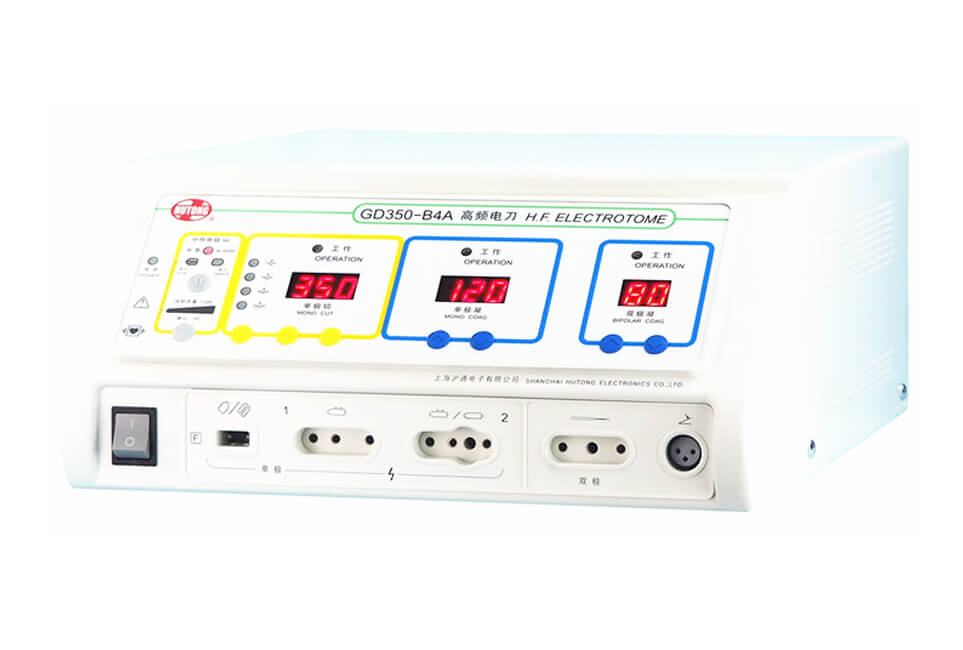

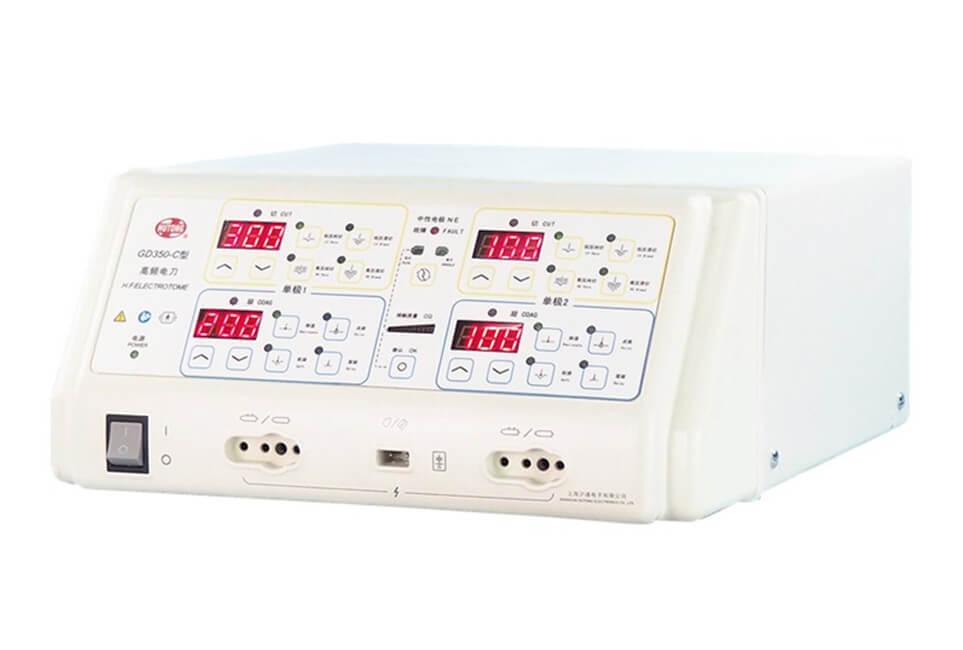

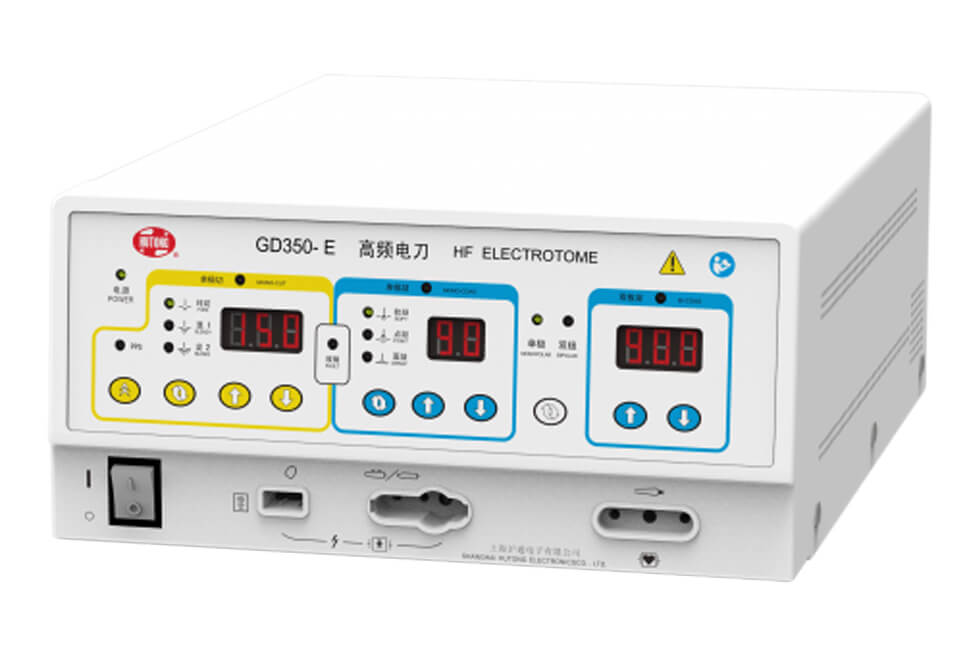

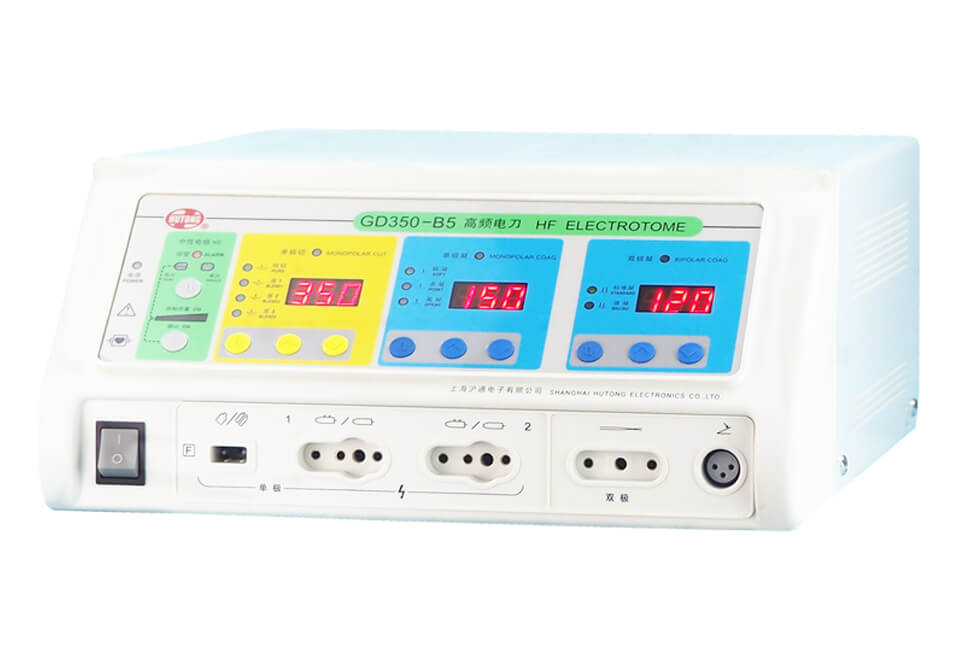

The GD350 Series (Model GD350-B, GD350-C, GD350-D, GD350-P, GD350-T, GD350-B4A, GD350-B5, GD350-S1, GD350-S3, GD350-E) is a compact and easy-to-use electrosurgical generator. It's versatile enough to handle a wide variety of office-based procedures with six modes including pure cut, blend, monopolar coagulation, and bipolar coagulation.
Six modes
Pure Cut, Blend 1, Blend 2, Blend3
Monopolar coagulation, Bipolar coagulation
Easy to use with automatic recognition of patient-plate by single cable
PPM system for patient-plate contact that takes into account skin type and includes bargraph display (LED bar) to show contact level
Monopolar two outputs: one hand switch and one foot switch
Unexpected power-off protection system and short-circuit protection
Auto-test: self-test of generator after switching the power on
mode | pure cut | blend 1 | blend 2 | blend 3 | monopolar coag | bipolar coag |
operation frequency | 512KHz | 512KHz | 512KHz | 512KHz | 512KHz | 512KHz |
output power | 350W | 250W | 200W | 120W | 120W | 50W |
rated load | 500Ω | 500Ω | 500Ω | 500Ω | 500Ω | 100Ω |
Breast Surgery | Maxillo-Facial Surgery | Neurosurgery | Laparoscopic Surgery |
Ophthalmic Surgery | Urology Surgery | cosmetic surgery | Endoscopy |
Cardiothoracic Surgery | Hepatobiliary Surgery | Orthopaedics and Trauma | Plastic reconstructive Surgery |
Gynecology | ENT | oncology | Day surgery |
