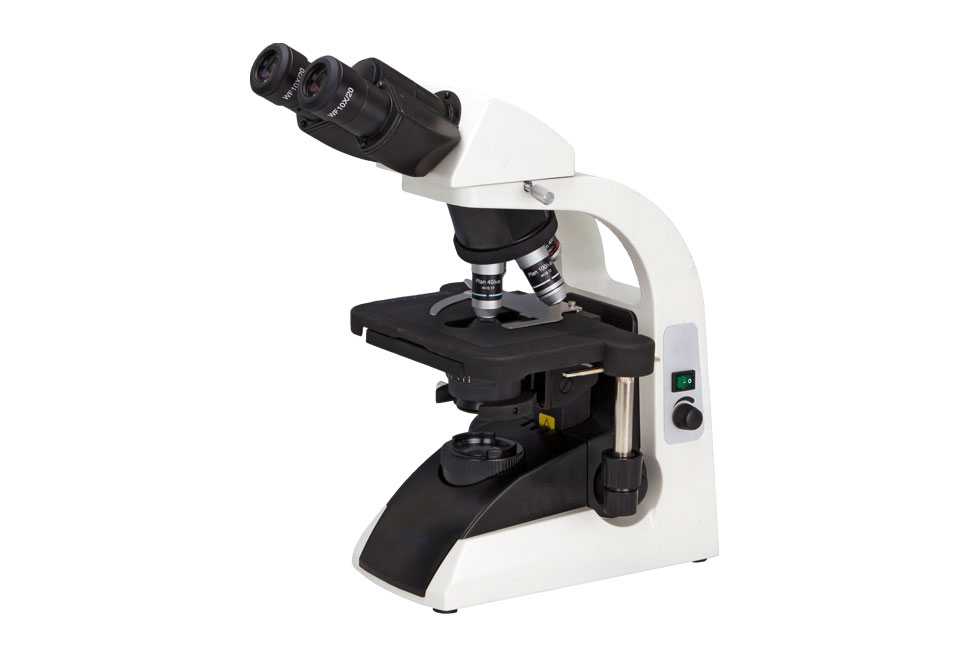

Excellent image quality with the infinite optical system.
Comfortable operating with perfect streamlined structure design.
Better illumination with the sliding-in condenser, convenient replacement with phase contrast, and darkfield condenser.
Optical System | Infinite Optical System |
Viewing Head | Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm |
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | |
Eyepiece | WF10X/20 |
WF15X/16 | |
Objective | Infinite plan Achromatic Objective 4X, 10X, 40X, 100X |
Infinite plan Achromatic Objective 20X, 60X | |
Nosepiece | Backward Quadruple Nosepiece |
Backward Quintuple Nosepiece | |
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm |
Stage | Rectangular 230X150mm, Cross Travel 78X54mm, Using Low-positioned X/Y Coaxial Control Knob |
Condenser | Abbe Condenser NA1.25 with Aperture Diaphragm |
Illumination | 12V/20W Halogen Lamp, Brightness Adjustable |
S-LED Illumination, Brightness Adjustable | |
Optional | Photo Attachment, Video Attachment, Polarization Set, Kohler Illumination, Phase Contrast Kit |
