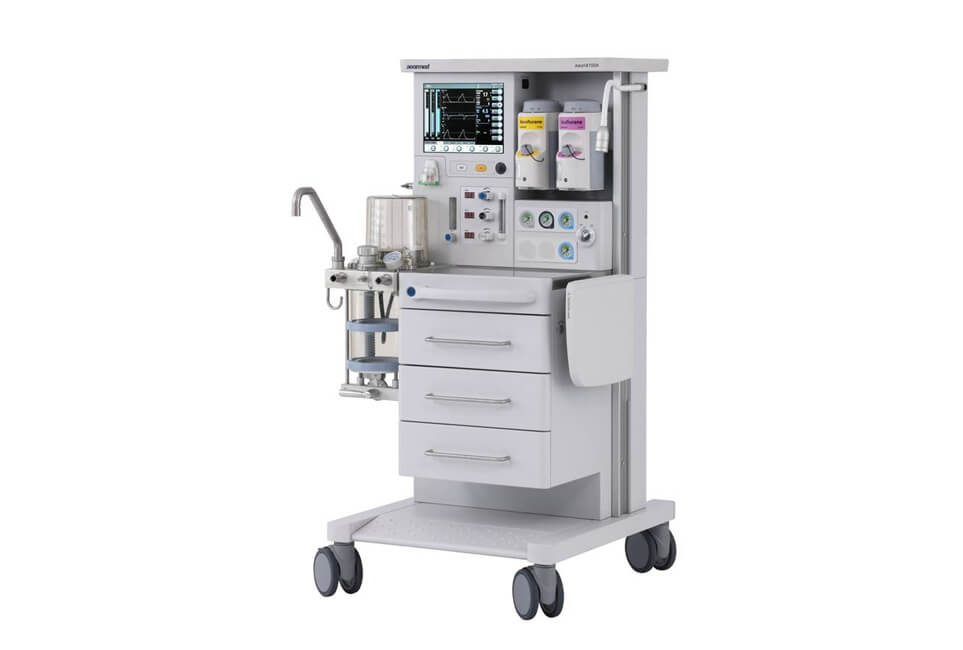

AEON8700A Anesthesia Machine offers a comprehensive ventilation mode including PCV-VG, SIMV-PC provides more flexibility to ventilation strategy, suitable for various patients operation including pediatric and adult. Advanced ventilation management, provides an accurate and broad of settings enabling effective care across a wide range of patient sizes and acuity types
PCV, PS+ Apnea ventilation modes provide more flexibility to ventilation strategy, suitable for various patients' operation including pediatric and adult.
Advanced ventilation management, intelligent switch for key parameters in conversion process of ventilation mode.
Support both low-flow anesthesia and min-flow anesthesia.
Electronic flow-meter, precise control and convenient operation.

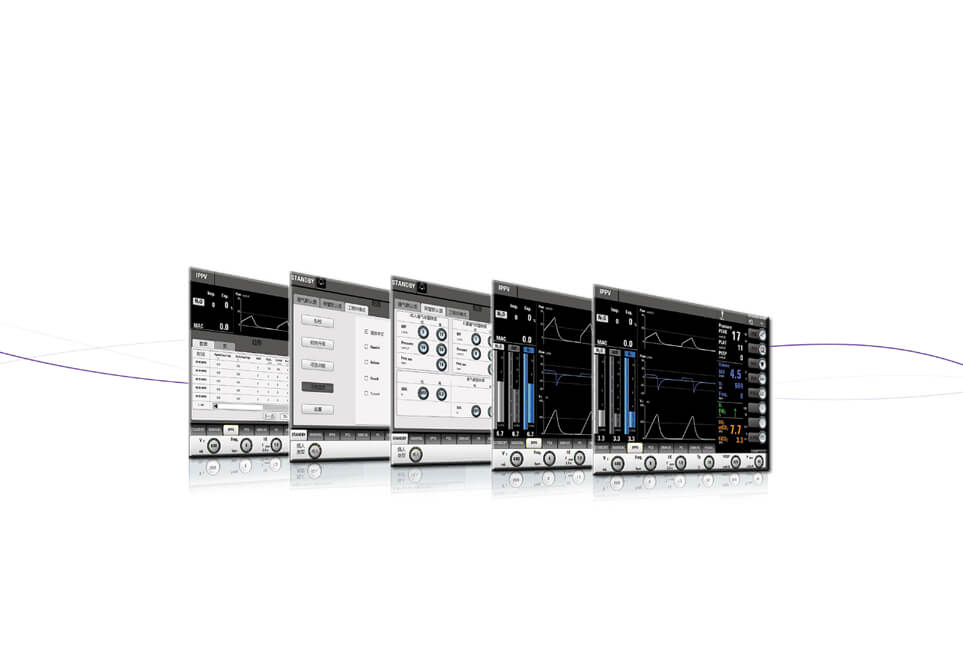

12.1" TFT-LCD color screen, highlighted display.
Options such as spotlight and auxiliary table offer more function support.
CE marked, meets EU clinical requirement.
Displays more clinical monitoring parameters such as continuous trend information and spirometry loops, in addition, routine patient data and waveforms.
Convenient breathing circuit maintenance work, easy to remove installation, can withstand repeated cleaning and high temperature and high pressure sterilization.
ANESTHESIA GAS SUPPLY MODULE | |
Gas supply | O2, N2O, AIR; 280j600kPa |
Cylinder yokes | Optional: O2, N2O, AIR |
Fresh gas flow indicator | Electronically display and virtual fresh gas flow tubes |
Range of fresh gas flow indicators | O2, N2O (0~10.0 L/min), AIR (0~12.0L/min) (increments of 0.05) |
O2 flush | 25~75 L/min |
Auxiliary common gas outlet (ACGO) | Optional |
Anesthetic Gas Scavenging System (AGSS) | Optional |

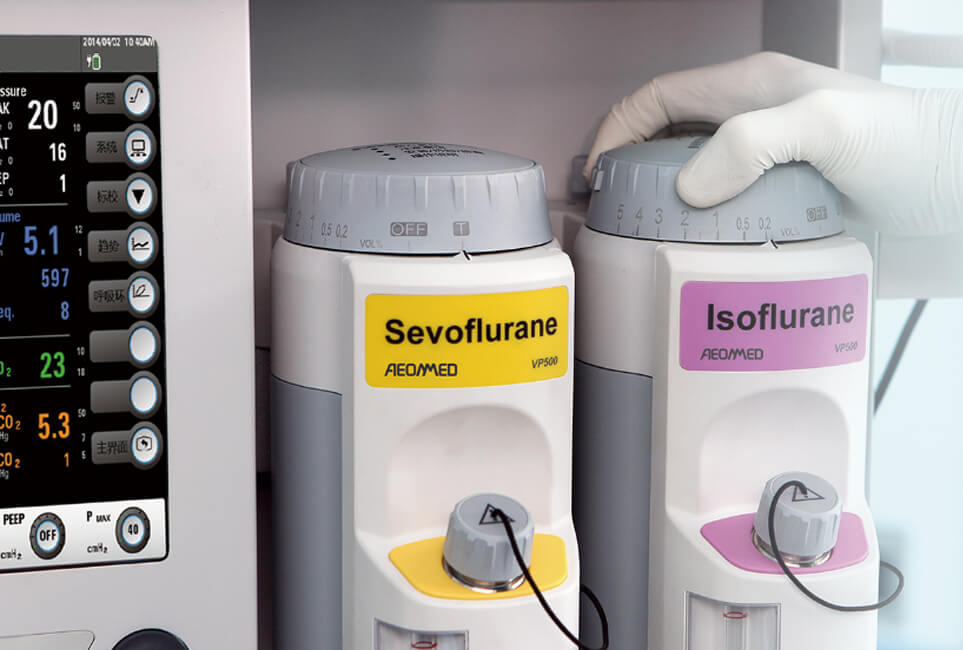

Agent | Sevoflurane, Halothane, Enflurane, Isoflurane |
VENTILATOR OPERATING SPECIFICATIONS | |
Ventilator | Pneumatically driven, Electronically controlled |
Ventilator Monitoring & Alarms | |
Ventilation modes | l Manual/Spontaneous l Volume control (IPPV) l Pressure control (PCV) l Pressure Controlled Ventilation Volume Guaranteed (PCV-VG) l Synchronized Intermittent Mandatory Ventilation in Volume (SIMV-VC) l Synchronized Intermittent Mandatory Ventilation in Pressure (SIMV-PC) l Pressure support (PS) with Apnea Backup |
Breathing frequency (Freq) | 2~100 bpm |
Positive end expiratory pressure (PEEP) | OFF, 3~30 cmH2O |
Inspiration/expiration ratio (I:E) | 4:1~1:8 |
Tidal volume (Vt) | 20~1500 ml in Volume Control |
