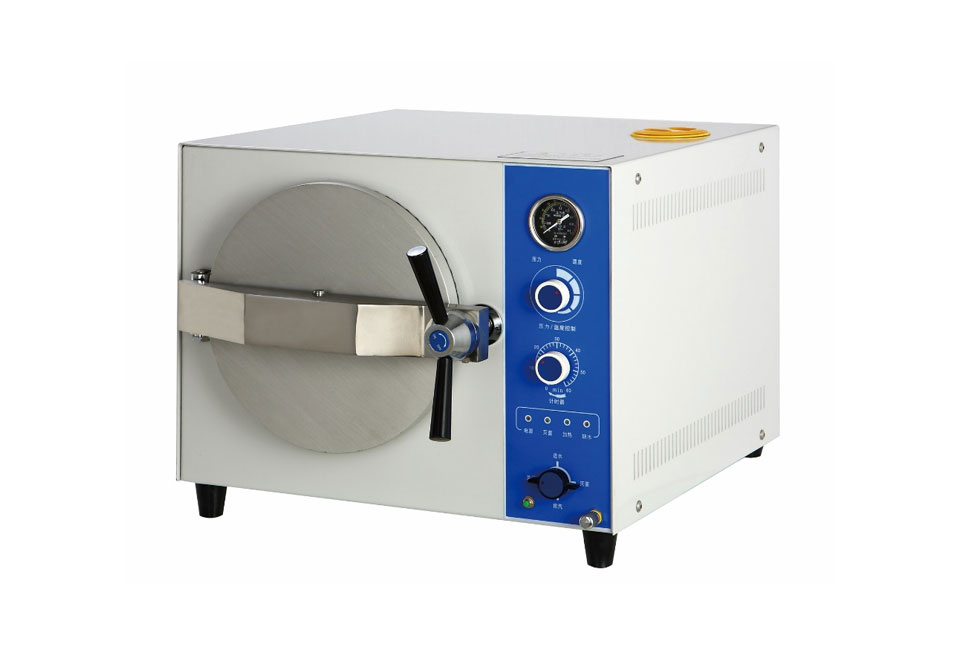

The product utilizes saturated steam to rapidly and efficiently sterilize articles. It's application and function are similar to those of portable pressure steam sterilizer. Steam autoclave machine can be used in hospitals, public health centers, health stations, clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions, substrata. It can also be used as a cooker in plateau areas and be used to make high-quality drinking water in industrial and mining enterprises.
Indicator light indicates a working state.
For 4~6 minutes rapidly sterilizing.
Sterilizing temperature and time can be preset.
Steam water inner circulation system no steam discharge, and the environment for sterilizing will be clean and dry.
Over-temperature &over pressure auto-protection.
Safe protection of water lacking.
Exhaust the cool air automatically.
With three stainless steel sterilizing plates.
The chamber of the sterilizer is made of stainless steel.
Automatically shut off with beep reminding after sterilization.
MODEL | TM-XB20J | TM-XB24J |
Technical Data | ||
Sterilizing chamber volume | 20L φ250×420mm | 24L φ250×50mm |
Working pressure | 0.22Mpa | |
Working temperature | 134℃ | |
Temperature adjust range | 105-134℃ | |
Timer range | 0-60min | |
Heat average | ≤±1℃ | |
Power | 1.5KW/AC220V.50Hz（AC110V.60Hz） | |
Sterilizing plate | 340×200×30(3piece) | 400×200×30(3piece） |
Dimension | 480×480×384 | 580×480×384 |
Exterior package dimension | 700×580×500 | 800×580×500 |
G.W/N.W | 44/40Kg | 50/45Kg |
