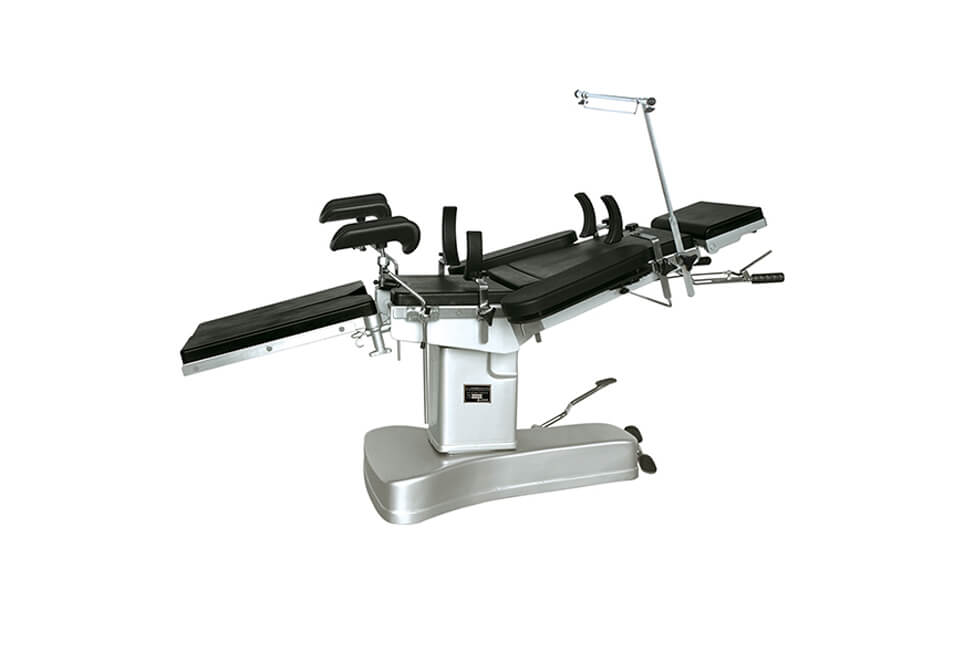

JY Series (JY·A, JY·C, JY·D) Manual Operating Table is a cost-effective, multi-performance operating table that meets the requirements of different surgeons.
JY Series Operating Table support is formed with alloy aluminum by forging process and will never get rusty.
The mattress is wrapped with imported artificial leather.
High-density memory sponge is formed in one piece, with no seam.
The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.
Foot treadle brake device which is easily for moving operating table.
Standard Accessories: A pair of shoulder and waist support frame, a pair of arming resting frame, a pair of leg support frame, a screen frame.
Mode | JY.A | Mode | JY.D |
Table Length mm | 2000±50 | Table Length mm | 2000±50 |
Table Width mm | 500±20 | Table Width mm | 500±20 |
Height Adjustment mm | (750~1000) | Height Adjustment mm | (740~1000)±50 |
Backboard Upwards | ≥75° | Horizontal rotary | 360° |
Backboard Downwards | ≥10° | Backboard Upwards | ≥60° |
Trendelenburg | ≥15° | Backboard Downwards | ≥10° |
Rev-Trend | ≥15° | Trendelenburg | ≥20° |
Tilt(Left)/Tilt(Right) | ≥15° | Rev-Trend | ≥15° |
I lead board Upwards | ≥35° | Tilt(Left)/Tilt(Right) | ≥25° |
I lead board Downwards | ≥90° | Head board Upwards | ≥30° |
Leg board Downwards | ≥90° | Head board Downwards | ≥90° |
Leg board Downwards | ≥90° | ||
Leg of the board split | ≥180° | ||
Lumbar upper corner “^” | ≤170° | ||
Lumbar lower corner “V” | ≤120° |
