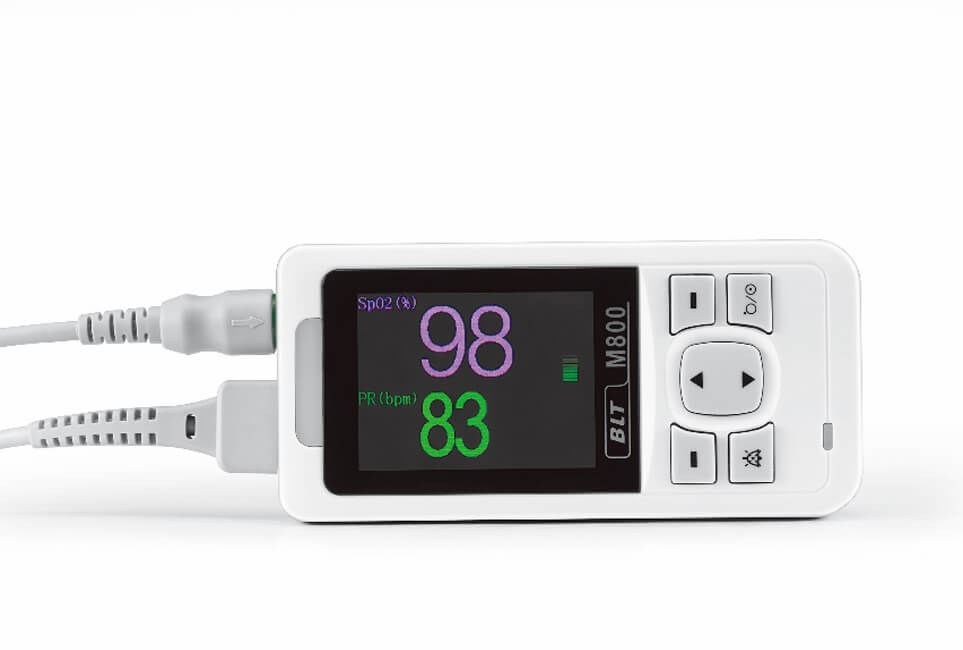

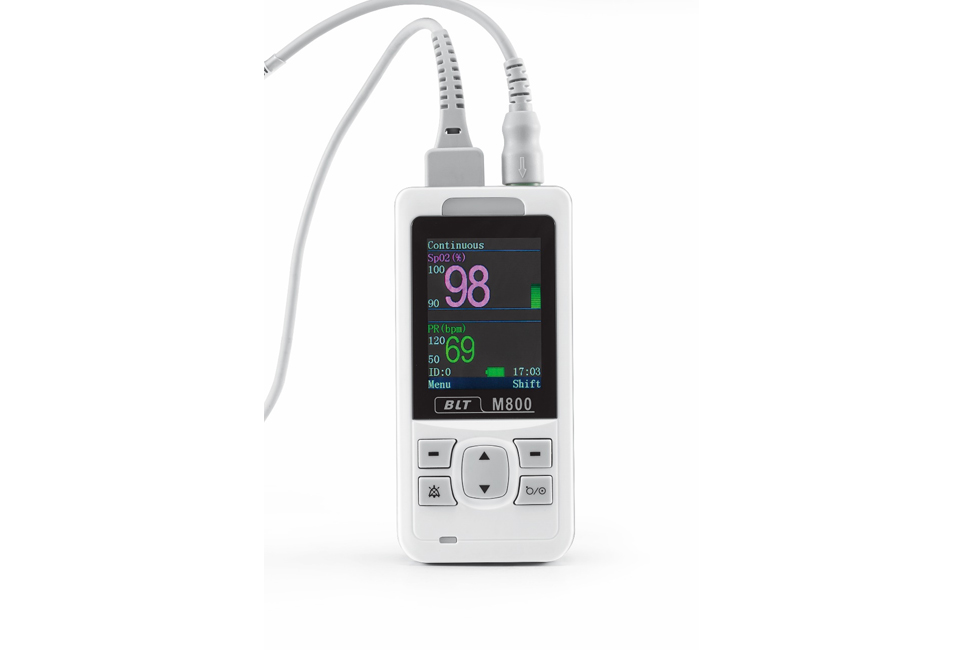

M800 Handheld Pulse Oximeter

Key Features of M800 Handheld Pulse Oximeter

• Monitoring parameter:

  SpO₂, PR (Standard), Nellcor SpO₂ (Optional), ECG, RR(Optional)

• Portable, easy to carry

• 2.4" color TFT display with auto-rotation function

• Selectable layout modes including font and waveforms

• Dual work modes: continuous monitoring & spot check

• Adjustable audio and visual alarms

• Large data storage capacity up to 300 groups per ID

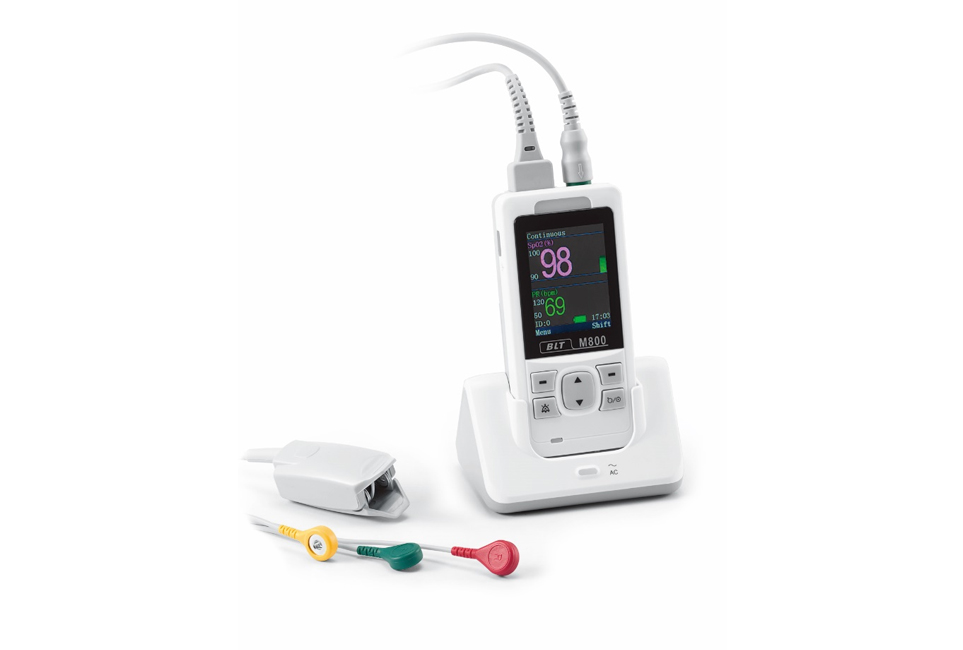

• 3x AA batteries or rechargeable battery with charger stand(optional)

• Automatic power-off function for power saving

• Apply to hospital, clinic, and home

Specifications of M800 Handheld Pulse Oximeter

• Standard Configuration: SpO₂, PR, PI

• Option: Nellcor SpO2, ECG, RR

• SpO₂:

• Measurement range: 0~100%

• Resolution: 1%

• Accuracy: 70~100%: ± 2% PR

• Measurement range: 25 bpm ~250 bpm

• Resolution: 1 bpm

• Accuracy: ±1% or ±1 bpm, whichever is the greater

• Refreshing rate:<13 seconds

• ECG

• Lead type: Standard: 3-lead (RA, LA, LL or R, L, F)

• Gain: 2.5mm/mV(×0.25), 5mm/mV(×0.5), 10mm/mV(×1)

• Input impedance: ≥5.0MΩ

• Input current:<0.1 uA

• Baseline recovery: ≤ 3 s

• Defibrillator-proof

• Electrode off indicating: with

• HR range: 10 bpm ~300 bpm

• HR Resolution: 1 bpm
