The digital radiography X-ray machine Tube: Toshiba Brand; Focus: 0.6/1.2mm; Voltage: 150kV; Anode type: Rotating; Anode heat capacity: 400kHU
Collimator: Control: Manual; The average brightness of the light field:＞150lux; Input power: 10A 150W，AC24V

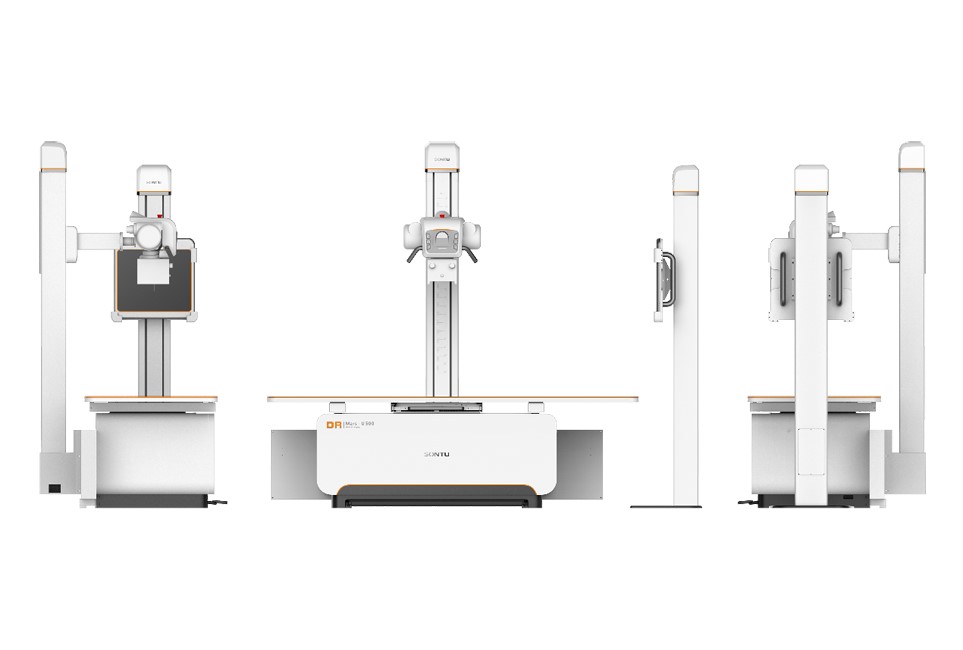

Aluminum column mold-opening technology is introduced for the first time in the healthcare industry that ensures the top-standard rack, feasible and compact structure, highly reliable and durable, with elegant appearance;

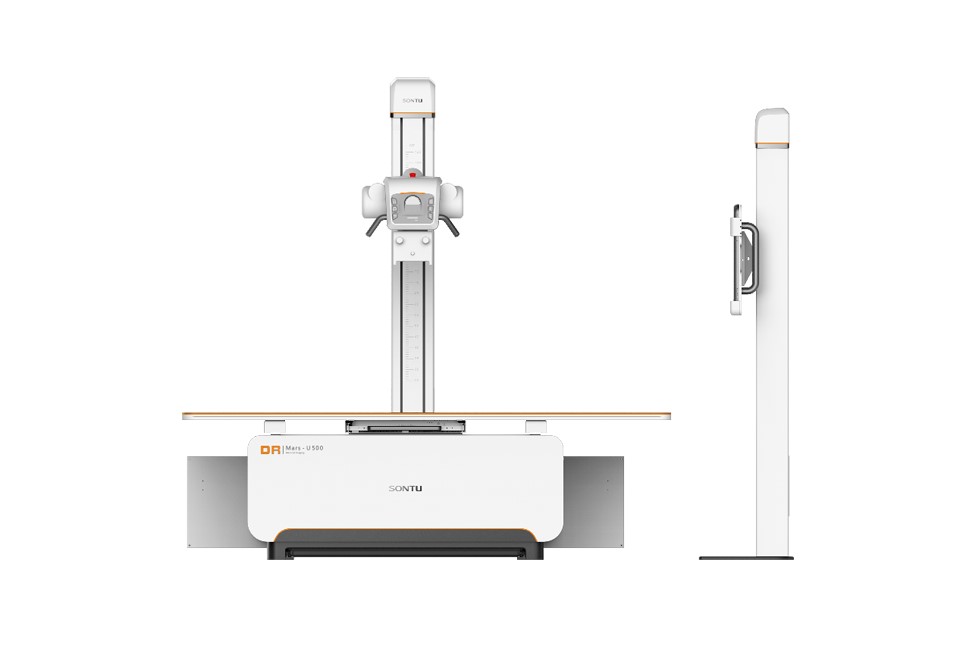

Fixed-bed with four-way horizontal floating tabletop and electromagnetic lock;
The high-voltage generator from SONTU ensures a stable performance and excellent technical supports;
Easy exposure parameters settings, and various advanced image processing system options available;
Meet the needs of all body parts, one machine meets all clinical applications. Faster, safer, and more accurate than CR;
The advanced APR control system can save countless shooting parts and shooting conditions in advance according to different user requirements, making the operation even easier.
Flat Panel Detector: Wired a-Si Flat Panel Detector; Amorphous Silicon (a-Si) Photodiode; Images size: 360mm x 430mm (14" * 17")
High Frequency Generator: 50kW, 50kHz, 40~150kV, 1kV step, 100~630mA, mAs range: 0.5mAs-630mAs
No. | Product Name | Quantity |
1 | Flat Panel Detector | 1 |
2 | DXRay Diagnostic Workstation | 1 |
3 | High-Frequency Generator | 1 |
4 | X-Ray Tube | 1 |
5 | Floor-mounted system | 1 |
6 | Bucky Stand | 1 |
7 | Collimator | 1 |
8 | Grid | 1 |
9 | High Voltage Cables | 2 |
10 | Paper report printer | 1 |
11 | Microphone/Speaker | 1 |
