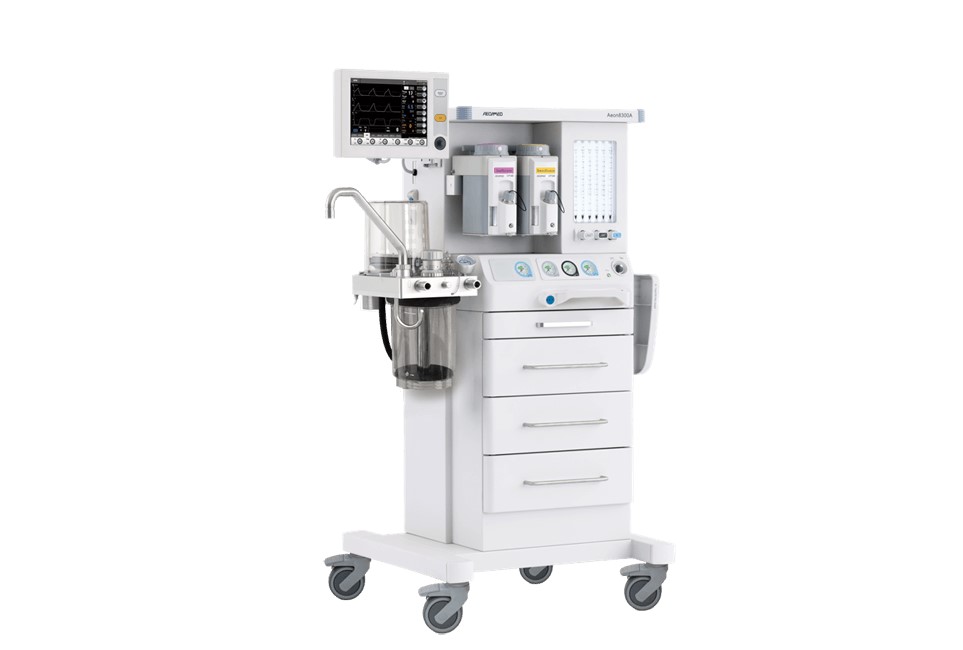

Aeon8300A anesthesia machine offers a wide variety of ventilation modes and monitoring parameters, enabling complex ventilation care for severe patients.
Various system components for convenience
Entire breathing system heating
Driven Mode | Pneumatically driven and Electronically controlled |
Patient Types | Adult and Pediatric |
Ventilation Modes | IPPV, PCV, SIMV-VC, PS/CPAP, and Manual, Optional: SIMV-PC, PCV-VG |
Tidal Volume | 20~1500ml |
Frequency | 2~100bpm |
I: E | 4:1~1:8 |
P(inspired) | 5~70cmH2O |
P(support) | 3~50cmH2O |
PEEP | OFF3~30cmH2O |
Aslope | 0~2s |
Inspiration pause | OFF, 5%~60%Ti |
Trigger | 1~15L/min |
Compensation | Compliance and leakage compensation, fresh gas and altitude compensation |
Pneumatic Specifications | |
Gas Supply | 280 ~ 600kPa 40.6 ~ 87.1psi |
Flowmeters | Double tube in series with backlight, O2: 0~1L/min, 1~10L/min, N2O: 0~1L/min, 1~10L/min, Air: 0~1L/min, 1~12L/min |
Auxiliary O2 | 0~12L/min |
Gas System | Oxygen supply failure protection |
O2 flush | 25~75L/min |
AGCO | Optional auxiliary common gas outlet |
AGES | Optional |

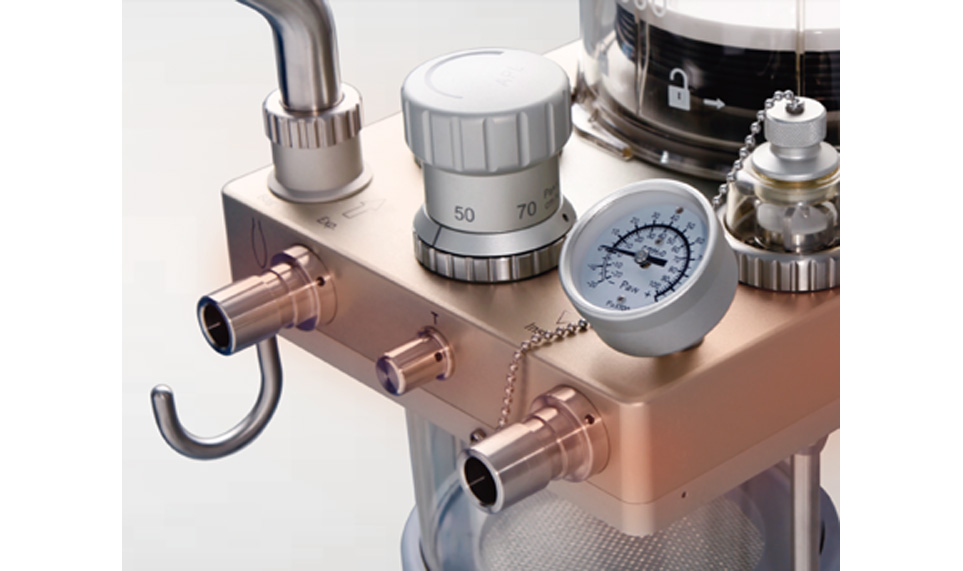

Breathing System Specifications | |
Operating Modes | Closed, Semi-closed, Semi-open |
CO2 Canister | Single canister 1.5L |
APL Range | Spontaneous breathing (SP) -70 cmH2O |
Material | Autoclavable (except O2 cell and pressure gauge) |
CO2 Bypass | Optional |
Ventilator Monitoring & Alarms | |
Pressure | Paw, Peak, Pplat, Pmean, PEEP |
Volumes | MV, Vt, Freq |
Gas | FiO2 |
Optional | CO2, AG, MAC |

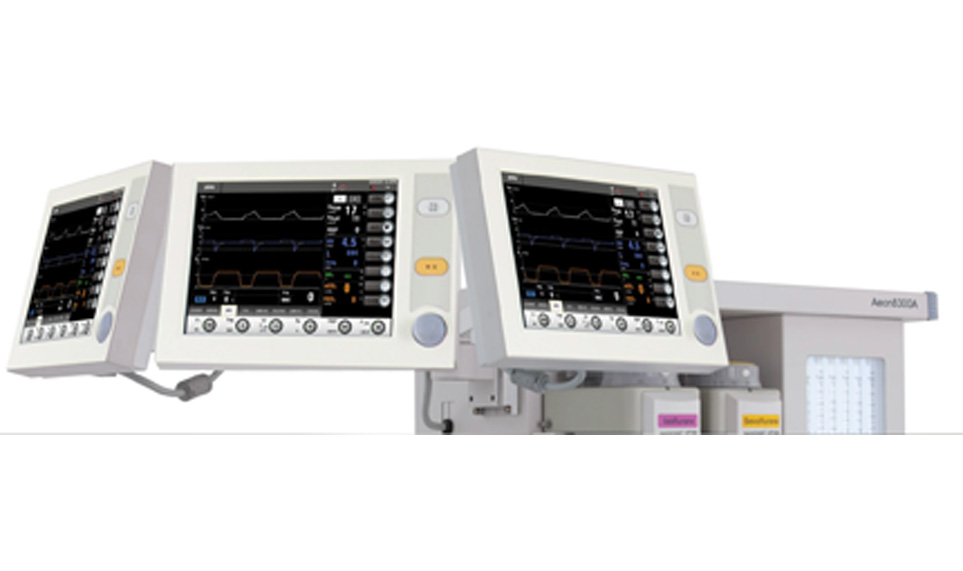

Graph Display | Pt, F-t, V-t Waveforms, P-V, F-V, P-F Loops |
Alarm | Audible and Visual alarms High/Low Airway Pressure Continuous Airway Pressure High/Low Minute Volume High/Low FiO2 High Freq O2 Supply Failure Power Failure Apnea |
Alarm Silence | ≤120 seconds |
Vaporizer | |
Supports two vaporizers (optional standby vaporizer parking holder) | |
Agent: Sev. Inf. Iso. Hal. | |
Installation Mode: Selectatec® with interlock | |
Filling Type: Pour-Fill, Key-Fill, Quik-Fil® | |
