Complete anesthesia ventilation capabilities.
Secure and reliable Fresh Gas and Anesthetic Gas delivery system.

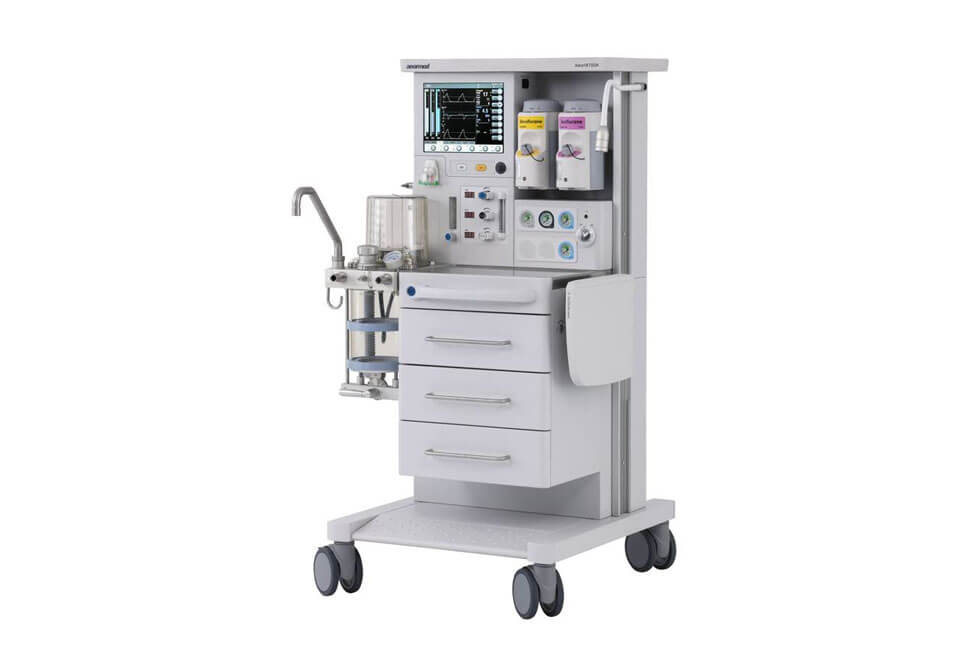

8700A ventilator offers a comprehensive ventilation mode including PCV-VG, SIMV-PC provides more flexibility to ventilation strategy, suitable for various patients operation including pediatric and adult. Advanced ventilation management, provides an accurate and broad of settings enabling effective care across a wide range of patient sizes and acuity types
Extensive monitoring
ANESTHESIA GAS SUPPLY MODULE | |
Gas supply | O2, N2O, AIR; 280j600kPa |
Cylinder yokes | Optional: O2, N2O, AIR |
Fresh gas flow indicator | Electronically display and virtual fresh gas flow tubes |
Range of fresh gas flow indicators | O2, N2O (0~10.0 L/min), AIR (0~12.0 L/min) (increments of 0.05) |
O2 flush | 25~75 L/min |
Auxiliary common gas outlet (ACGO) | Optional |
Anesthetic Gas Scavenging System (AGSS) | Optional |

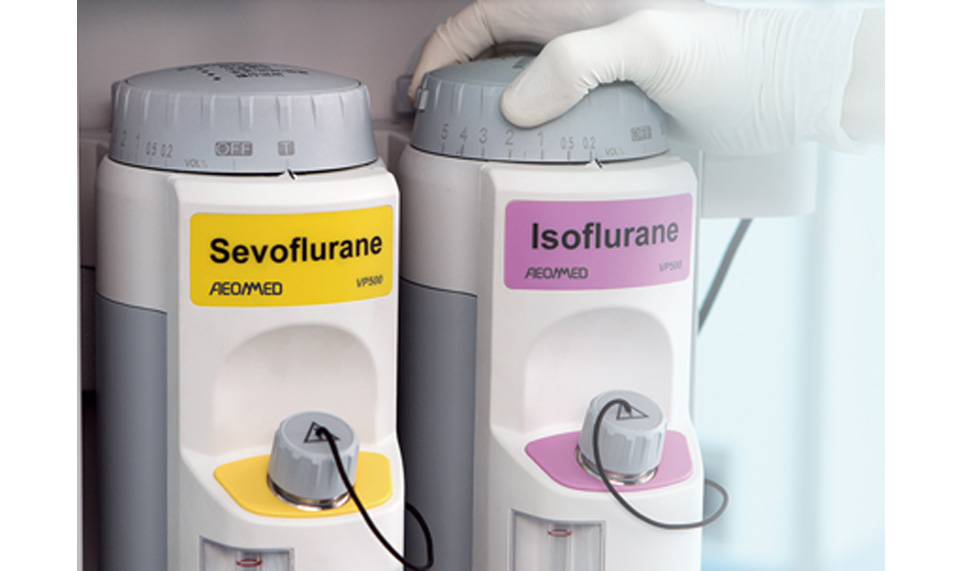

Agent | Sevoflurane, Halothane, Enflurane, Isoflurane |
Installation mode | Selectatec® with interlock, optional standby vaporizer parking holder |
Filling type | Pour-Fill, Key-Fill, Quik-Fil® |
The volume of the CO2 absorber | 3 L for double-canister or 1.5 L for optional single canister |

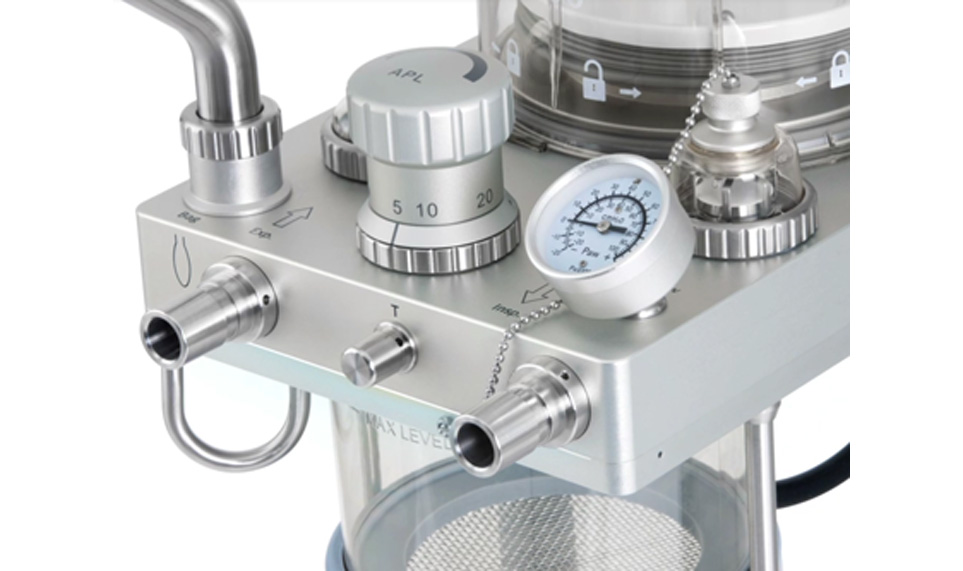

APL Range | Spontaneous breathing (SP) -70 cmH2O |
Material | Autoclavable (except O2 cell and airway pressure gauge) |
Heating system | 32-40 ℃ |
CO2 bypass | Optional |
VENTILATOR OPERATING SPECIFICATIONS | |
Ventilator | Pneumatically driven, Electronically controlled |
Ventilator Monitoring & Alarms | |
Ventilation modes | l Manual/Spontaneous l Volume control (IPPV) l Pressure control (PCV) l Pressure Controlled Ventilation Volume Guaranteed (PCV-VG) I Synchronized Intermittent Mandatory Ventilation in Volume (SIMV-VC) l Synchronized Intermittent Mandatory Ventilation in Pressure (SIMV-PC) l Pressure support (PS) with Apnea Backup |
Breathing frequency (Freq) | 2~100 bpm |
Positive end-expiratory pressure (PEEP) | OFF, 3~30 cmH2O |
Inspiration/expiration ratio (I:E) | 4:1~1:8 |
Tidal volume (Vt) | 20~1500 ml in Volume Control |
Inspiration pause | OFF, 5%~60% |
Inspiratory time | 0.2~5.0 s |
Inspiratory pressure (TARGET) | 5~70 cmH2O |
Pressure support level (ΔP) | 3~50 cmH2O |
Pressure limit (Pmax) | 10~70 cmH2O |
Trigger | 1~15 L/min |
Inspiratory Slope Time (TSLOPE) | 0~2s |
Compensation | Compliance and Leak compensation, fresh gas compensation, altitude compensation |
Ventilator monitoring & alarm | |
Monitoring | Continuous monitoring of inspiratory O2 concentration, breathing frequency, tidal volume, minute volume, peak airway pressure, PEEP, mean or plateau pressure, CO2 concentration (optional), anesthetic gas concentration (optional), paramagnetic oxygen sensors (optional) |
Compliance | 0~100 mL/cmH2O |

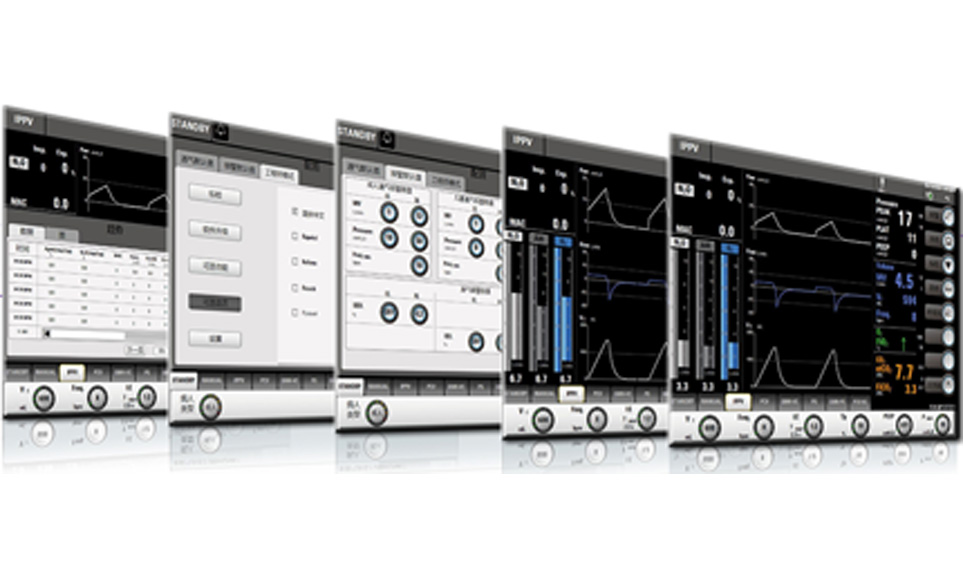

Control screen | 12.1" TFT color touch screen |
Graph Display | The waveform of P-t, F-t, V-t, CO2-t (option), P-V Loop, V-F Loop |
Alarm | MV high/low limit, FiO2 high/low limit, Paw high/low limit, Power failure, High Freq, Negative pressure, Continuous airway pressure, Apnea alarm Silence (120 seconds) |
