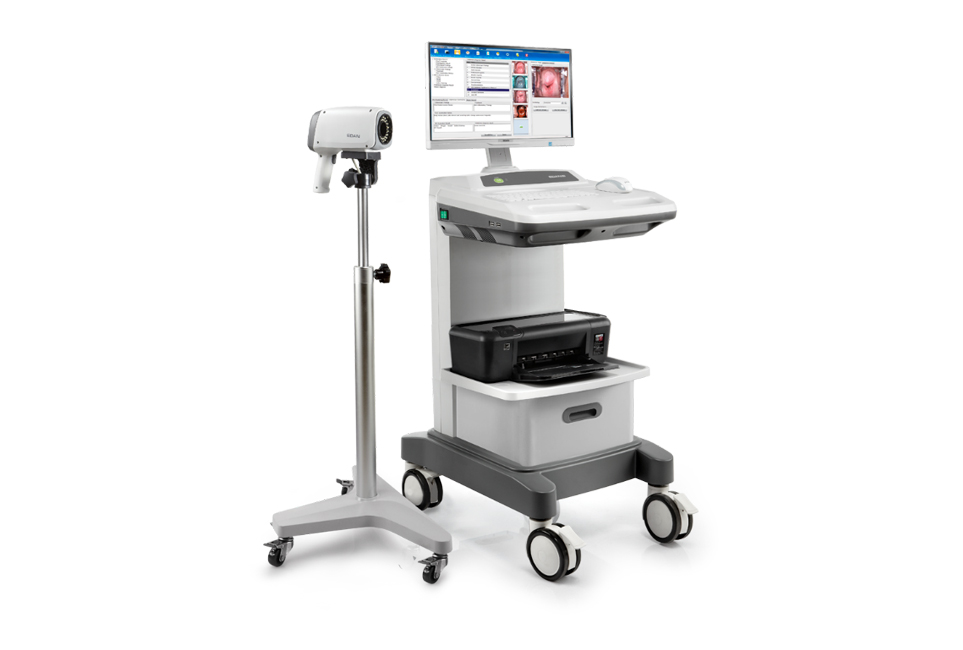

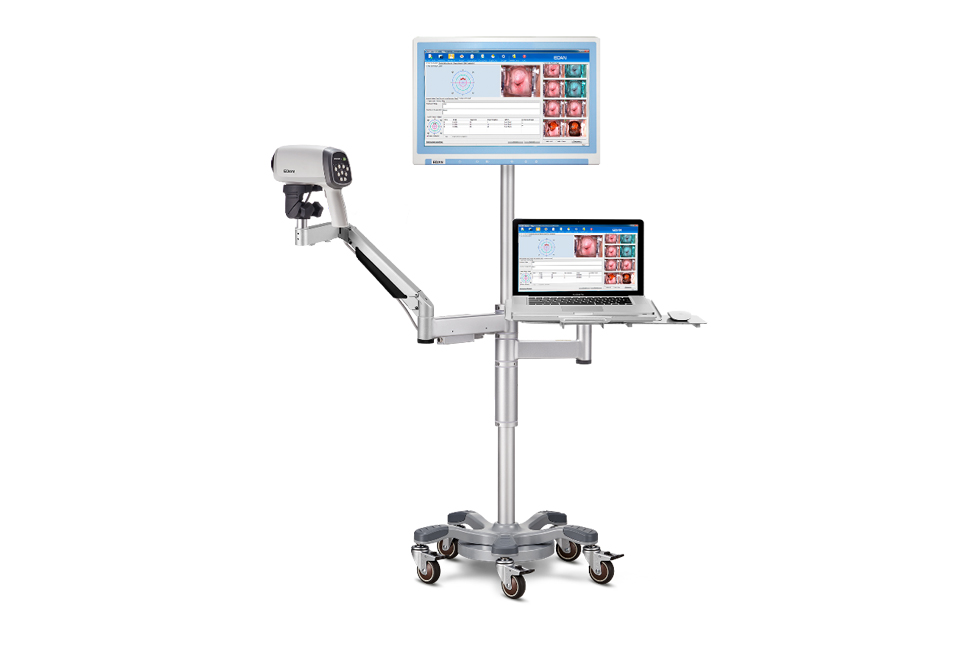

Considering different clinic position, we provide two types of colposcope, C3&C6 respectively. C3&C6 is equipped with work station, which combines monitor and keyboard. As for C3&C6, diverse stands are provided for doctor to choose, such as rolling stand, swing arm stand basic, swing arm stand with PC tray, swing arm stand with monitor arm and swing arm stand full set.
With its bright LED cold lighting system, high-resolution camera and electronic green filter, C3/C6 Video Colposcope realizes full-screen display of precise cervical examination, offering crucial and accurate information for clinical decision making to the gynecologist.
LED cold lighting system reproduces an original view of tissue.
Advanced and fast auto-focusing system ensures clear image.
Remote capture control and user-friendly keyboard layout for easy operation.
Electronic green filter enhances vascular image display without compromise of illumination.
Acetic acid and iodine reaction test timer to capture the right and precise image.
Real-time display of magnification.

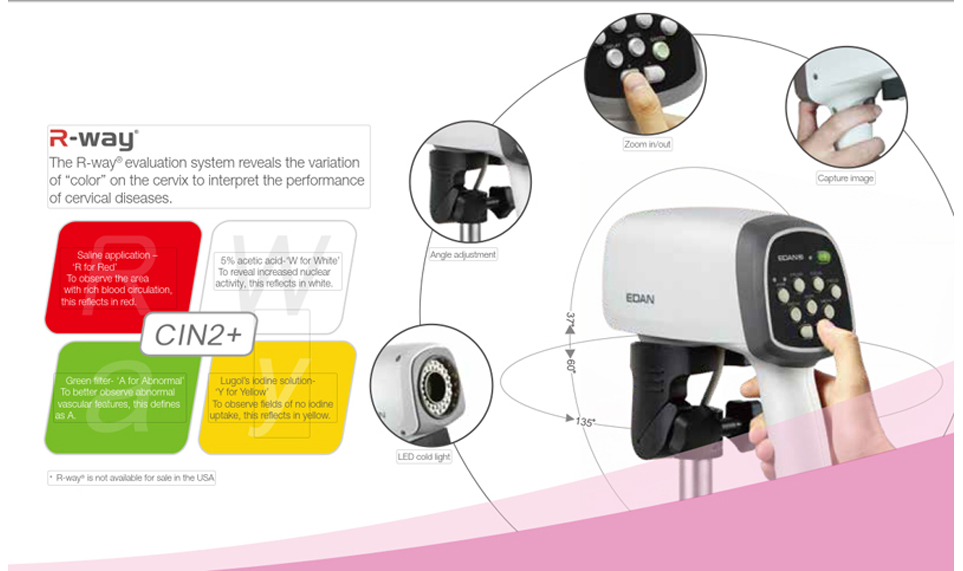

The R-way® evaluation system reveals the variation of "color" on the cervix to interpret the performance of cervical diseases.
Pixel: 440000(PAL); 380000(NTSC)
Focus Mode: Manual, Auto
Output Signal: S-Video
Illumination: ≥1600lux / ≥2500lux
Magnification: 1~28X / 1~36X
Operation Distance: 200mm~300mm
Field of View: 3X≥∅100mm (275mm) OR>20.5° / 18X≥∅15mm (275mm) OR>3°
System Resolution: ≥500TVL
Space Resolution: ≥10lp/mm
Image Geometric Distortion: ≤3%
Camera Light Source White: loop group LED light
Imaging Mode: White light (3 levels), Electronic green filter (3 levels)
Capture Box: 3-pin&4-pin aviation interface, USBB & DB9 interface, Power switch, DC port
