Automatic water level control: no risk of washing water overflow.
No-turn guide in the rack: no risk of film jamming or scratching.
Chemical filtration improves developing power and enhances film density.

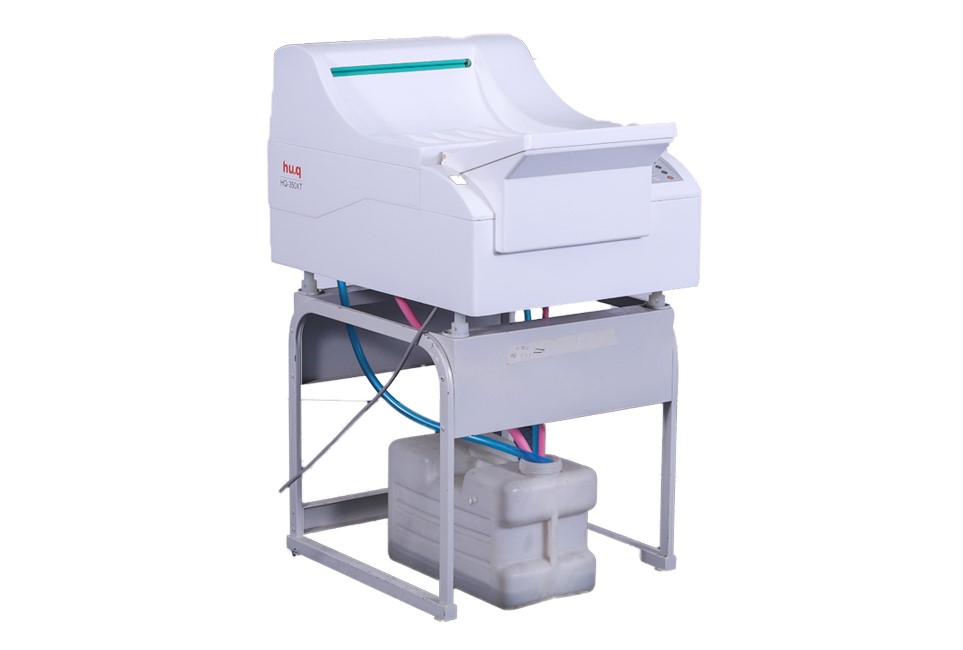

Design based on decades of experience and dedication in film processing, it can process all common film types and formats used in conventional standard radiography, generating high-quality radiographs with easy operation. It incorporates an automatic standby with a jog cycle for conserving water and energy, while its automatic replenishment function makes the developing process more efficient. State-of-the-art technology stabilizes developer and dryer temperatures. It is the ideal choice for imaging sites, diagnostic centers, and private practice offices.
Vortex drying fan: dry films more efficiently during high-speed processing
Tanks equipped with sensors: exempts you from taking care of chemical's condition
Film format | 3×5-14×17 (7.6×12cm-37×43.5cm) |
Film applicable | X-ray, CT, MRI, etc. |
Developing time | 3 speed: 25s, 35s, 45s |
Cycle period | 90s / 127s / 160s |
Capacity (14×17") | 70pcs/hour / 50pcs/hour / 40pcs/hour |
Chemical Temp. Range | 28 - 38 (±0.5) |
Drying temp. Range | 50 – 65 (±2) |
Tank capacity | 5.5L |
Replenish mode | Automatic(according to area monitored by infra-red sensors)/Manual |
Washing | Controlled by a solenoid valve, starts only after feeding of film |
Process procedure | Developing->Fixing->Washing->Drying |
Power | 220v/50Hz, 3KVA |
Dimensions | 86×58×120cm |
