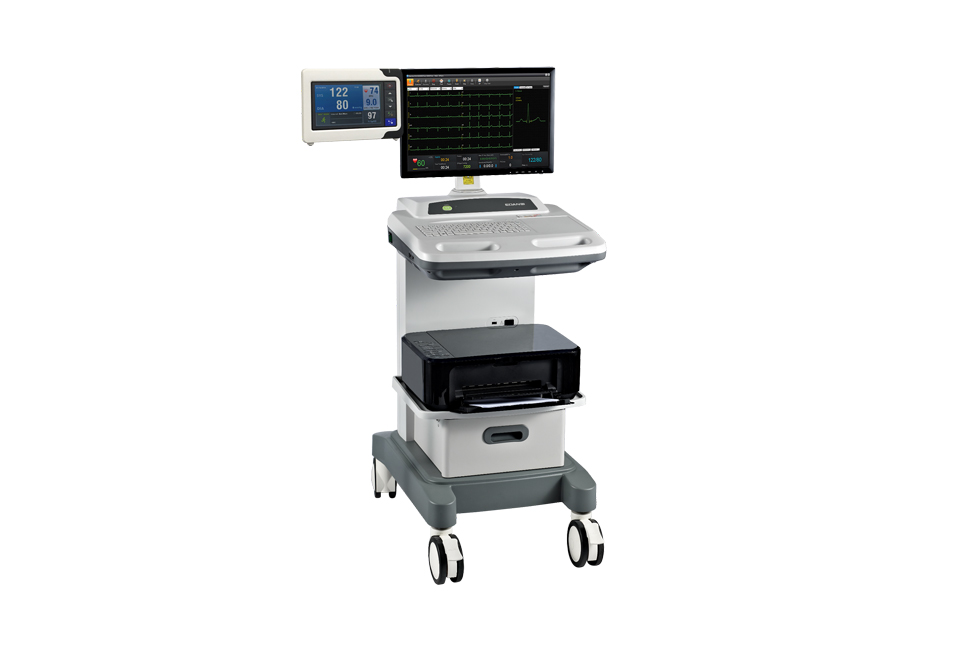

Combining exquisite ECG sampling boxes and comprehensive software together, the SE-1515 treadmill stress ECG provides efficient access to: resting ECG test, stress test, ECG data management and ECG network gateway. Besides ECG examinations, the SE-1515 also performs as a data management system, streamlining your workflow for all the Resting ECG, Stress ECG and Holter practices with optimized interoperability.
All-in-one ECG workstation for diverse ECG applications

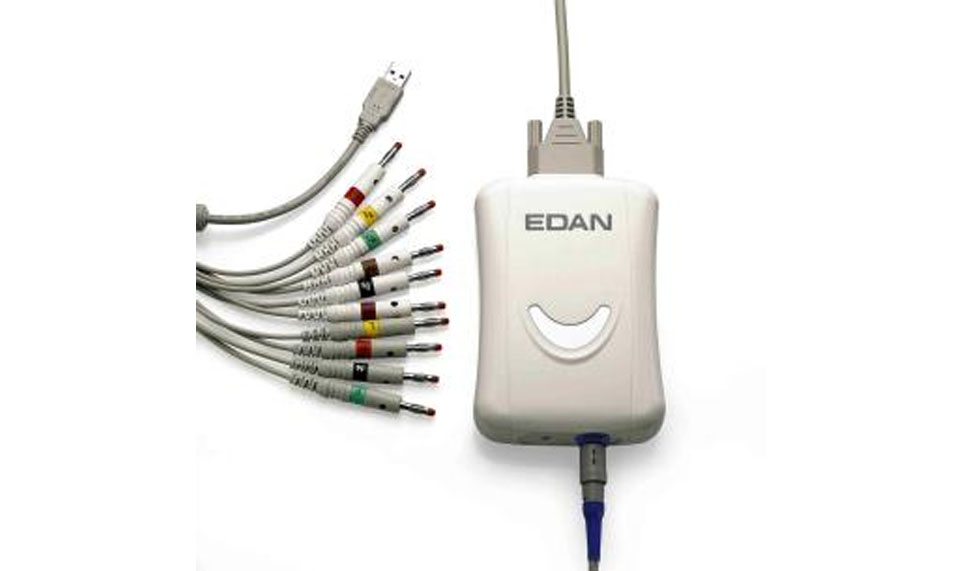

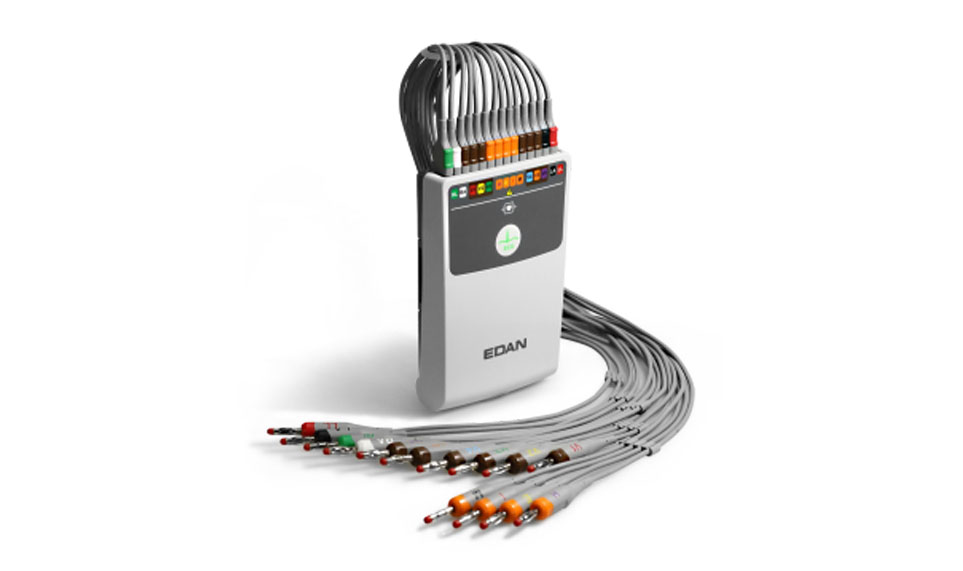

Unique Sampling Box
18/16/15-lead Resting ECG

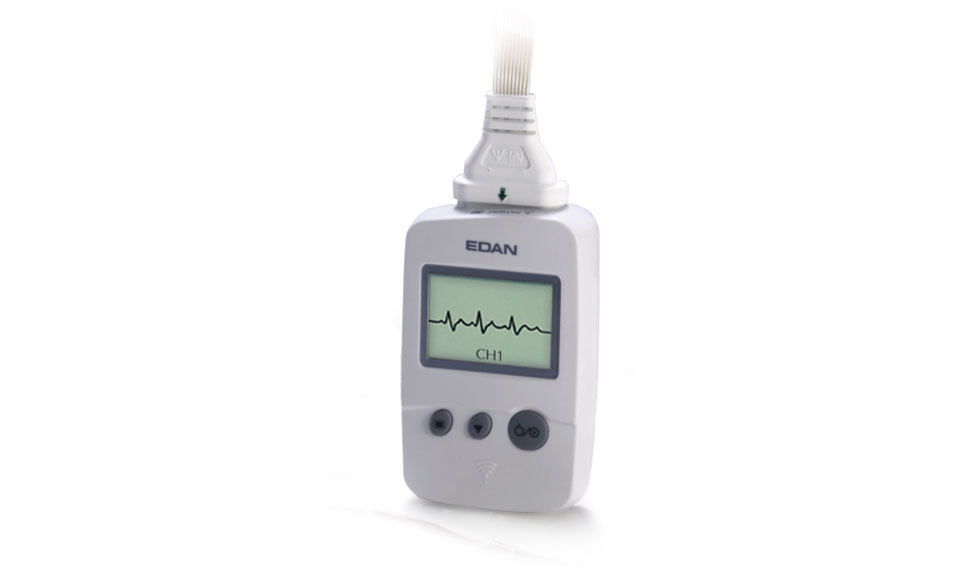

Wired/Wireless Stress Test
The color-coded lead map and the color-coded ECG waveforms facilitate instant signal quality indications.
The built-in ECG glossary consists of rich diagnostic templates with detailed feature descriptions and integrated diagnostic results, which helps clinicians draw conclusions effectively and efficiently.
Support unlimited user-defined protocols with automatic 12-lead reports. ST assessment METs, Double Product, Duke Score, and FAI% are also included to render you an integrated report.
Acquisition Mode | DE18 | Simultaneously 18 leads |
DE15 | Simultaneously 16 leads | |
DP12/DX12 | Simultaneously 12 leads | |
Sample Frequency | DE18/DE15/DP12 | 1kHz (Analysis) 16kHz (Sampling) |
DX12 | 0.5kHz (Analysis) 10kHz (Sampling) | |
A/D | DE18/DE15/DP12 | 24 bits |
DX12 | 18bits | |
Resolution | DE18/DE15/DP12 | 0.1575uV/LSB |
DX12 | 2.52uV/LSB | |
CMRR | DE18/DE15/DP12 | ≥123dB (AC OFF) |
DX12 | ≥100dB (AC OFF) | |
Frequency Response | DE18/DE15/DP12 | 0.01Hz~300Hz (-3dB) |
DX12 | 0.05Hz~150Hz (-3dB) | |
Input Impedance | DE18/DE15/DP12 | ≥100MΩ |
DX12 | ≥20MΩ | |
Pacemaker Detection | DE18/DE15/DP12 | ±750uV ~ ±700mV, 50us ~ 2.0ms |
DX12 | ±2mV ~ ±500mV, 0.1ms ~ 2.0ms | |
