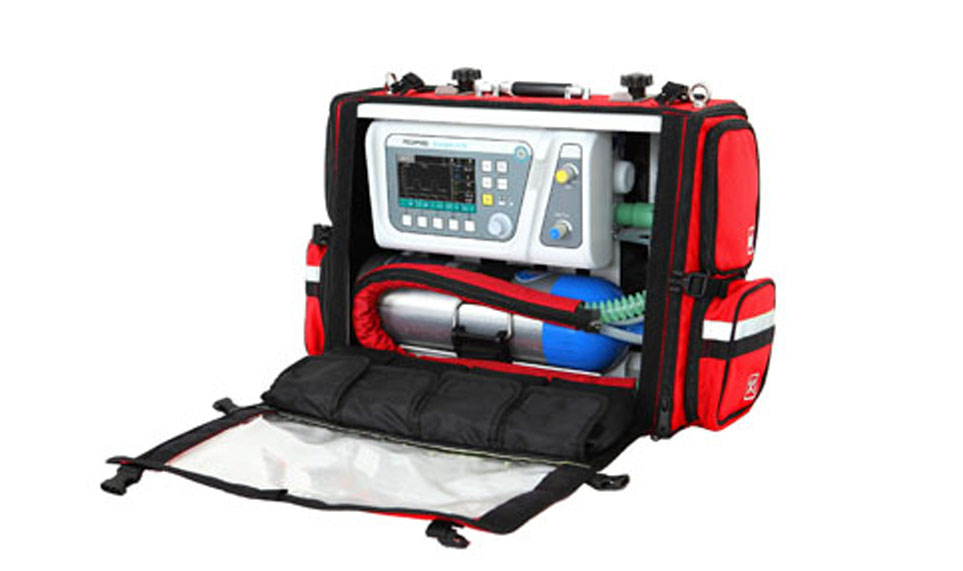

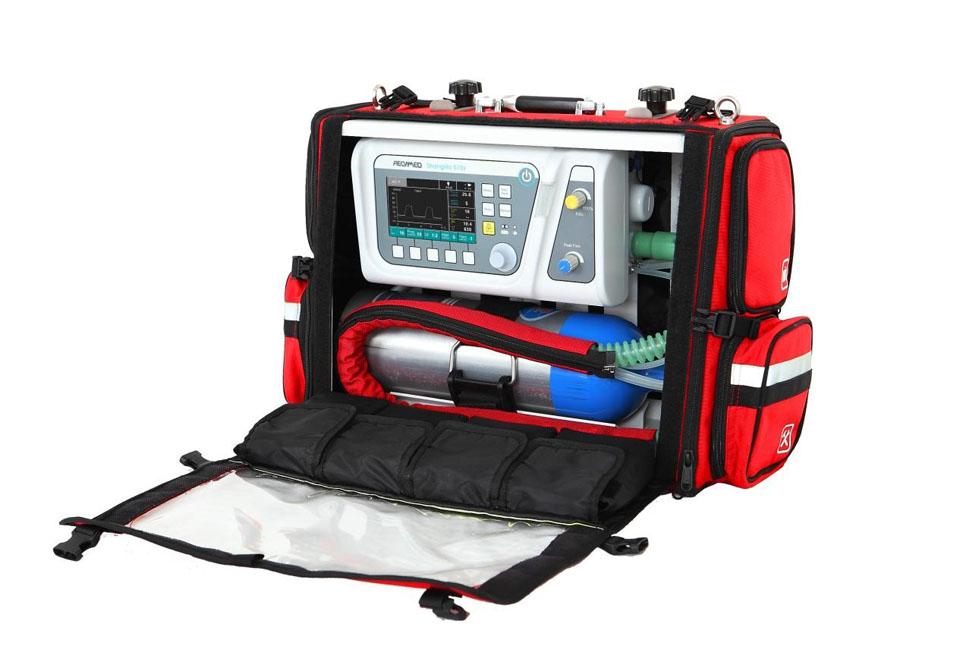

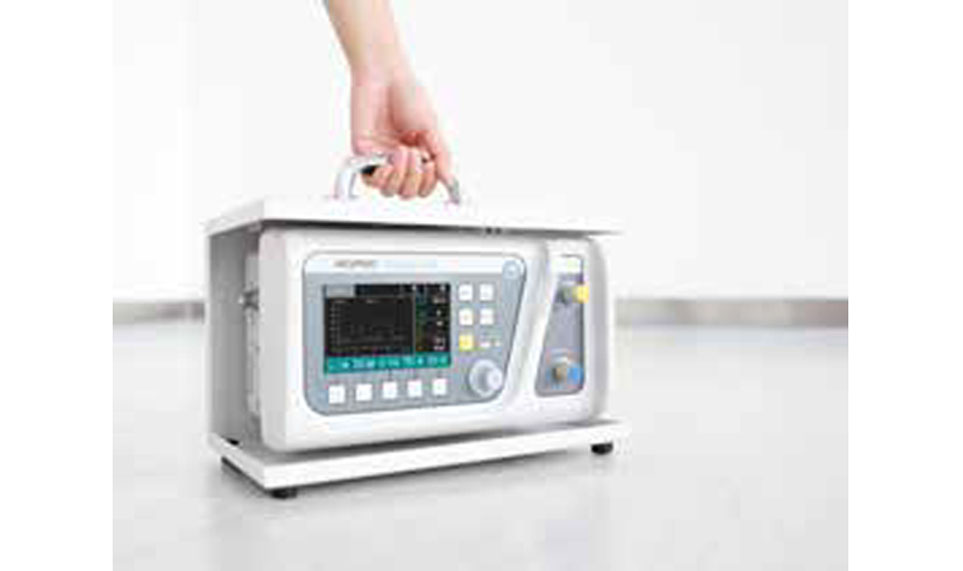

The Shangrila 510S is a multifunctional emergency transport ventilator that helps optimize quality of care and patient comfort improving patient outcomes. The Shangrila 510S has integrated versatile ventilation modes such as Pressure Control and Volume Control for Non-invasive and Invasive ventilatory support in SPONT/PSV mode as well as CPAP. Pneumatically driven and electronically controlled, the Shangrila 510S combines advanced technology and versatile ventilation functions, meeting the breathing requirements of adults, pediatric and infant patients.
Versatile Ventilation Modes
Multiple Ways of Power Supply
Ventilation Modes | A/C-V with Sigh, A/C-P, SIMV-V, SIMV-P, SPONT/PSV, CPAP, MANUAL |
Parameters | |
Tidal Volume | 0~2000 ml |
Respiration Rate | 1~120 bpm (A/C mode), 1~40 bpm (SIMV mode) |
I: E Ratio | 1:10~4:1 |
FiO2 | 40%~100% |
Flow Trigger | Pressure trigger: -20~0 cmH2O |
PEEP | 0~30 cmH2O |
Monitoring | |
Pressure Value | Peak, PEEP |
Volume / Flow Value | Vt, MV |
Time Value | total |
Real-Time Curves | Pressure-Time, Flow-Time |
Alarm | Paw high, Paw low, MV high, Gas supply down, No VT, FiO2 high, FiO2 low, Apnea, Continous pressure high / CP high, EX. power lost, O2 deficiency Battery low |
Technical Data | |
Supply Gas | O2, 0.25~0.6 MPa |
